A great off-road add-on!

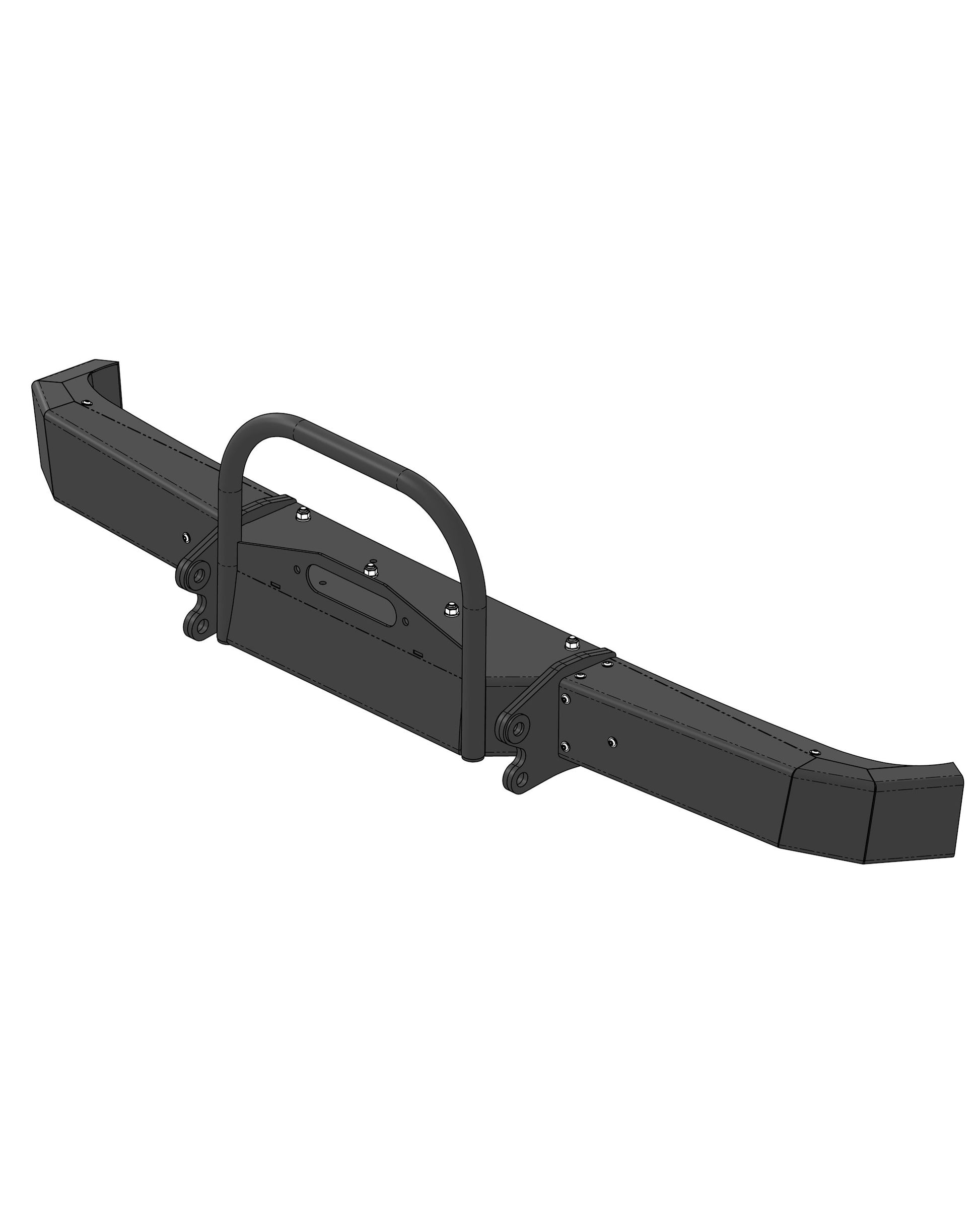

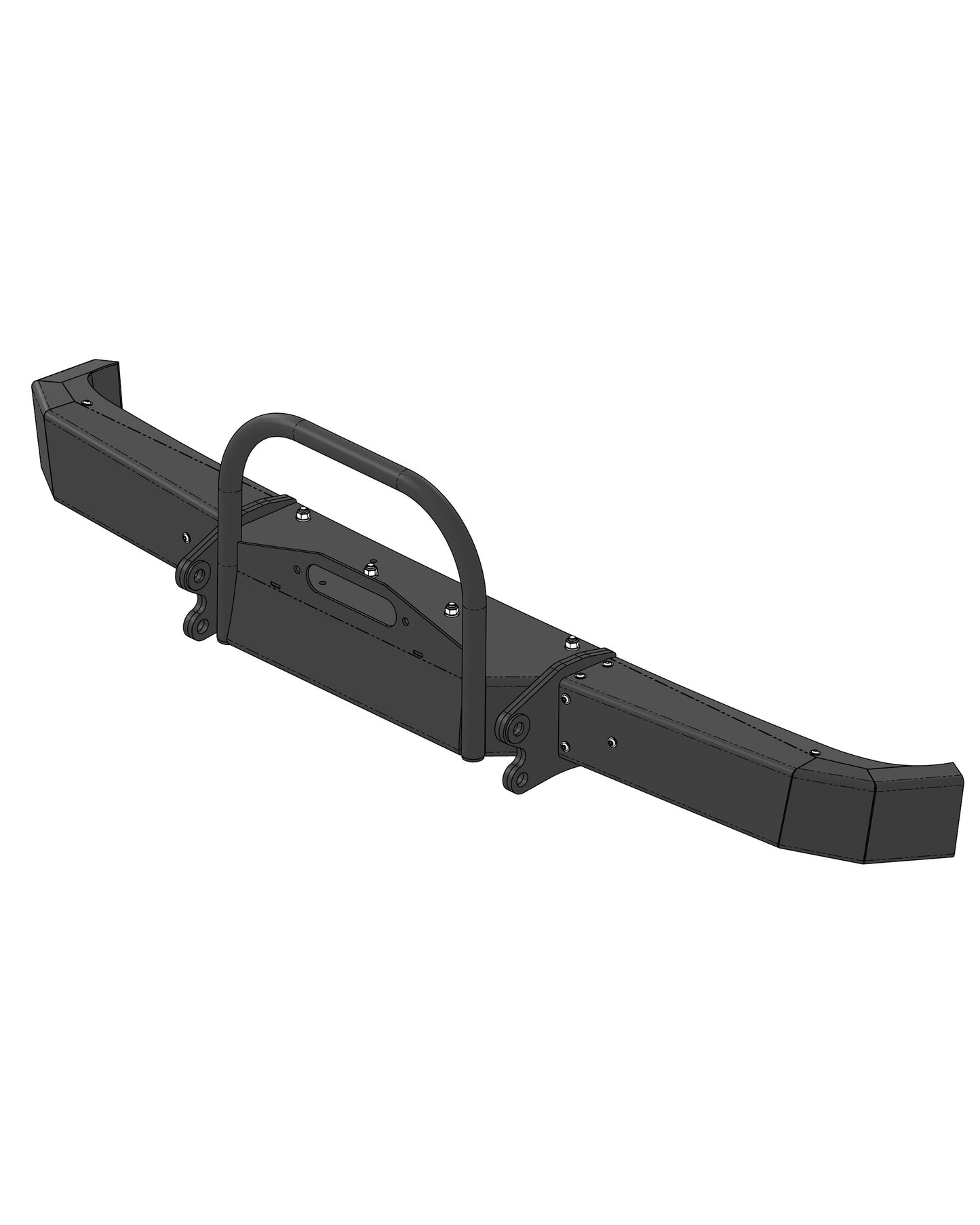

This bumper assembly replaces the standard front bumper with a robust bumper assembly having some great features:

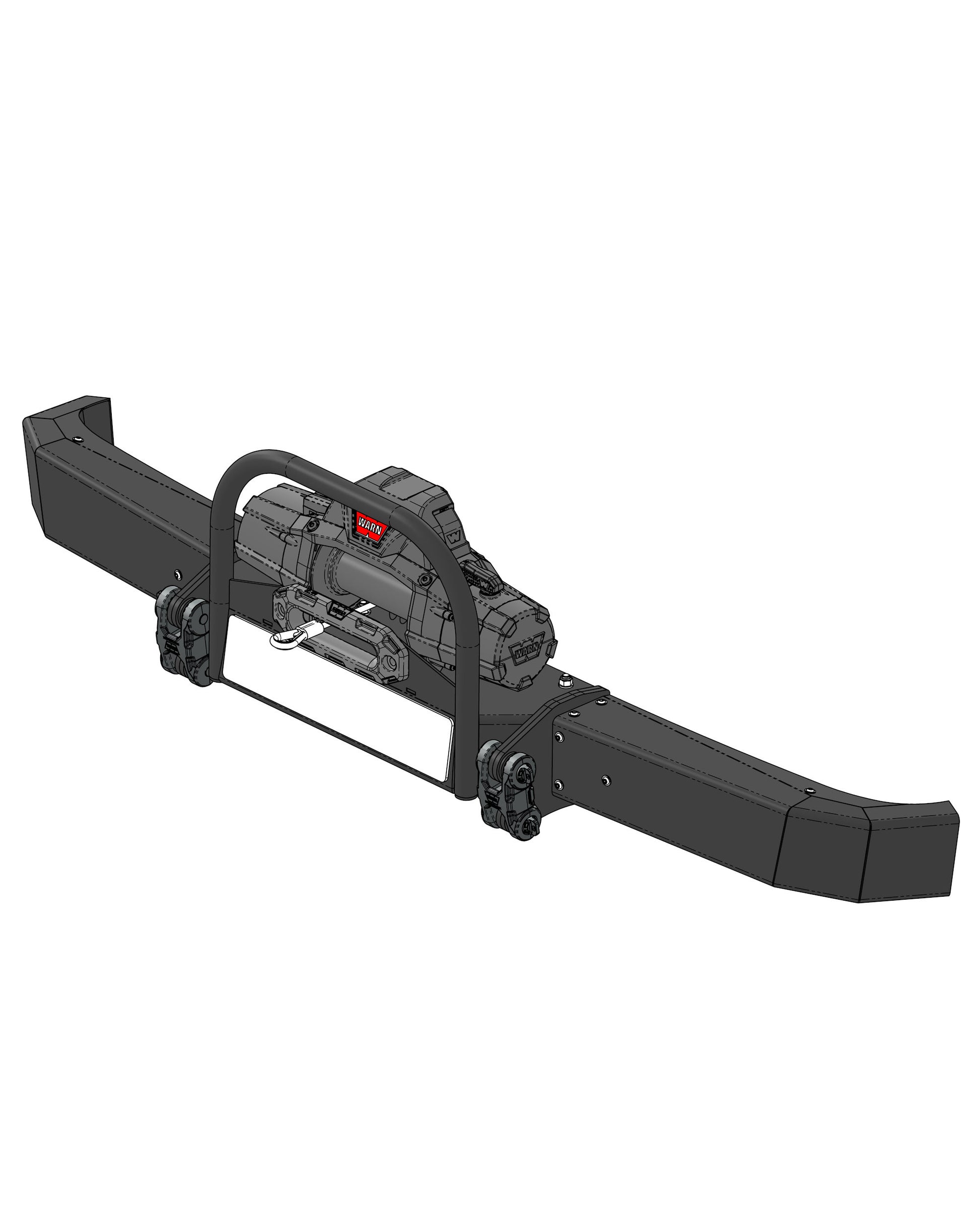

- Central winch mount bolted back to the vehicle main chassis structure. Designed to accept the Warn Zeon 10 Winch - 88990 and capable of mounting other similar winches.
- Integral Fairlead slot designed for the Warn Epic Hawse Fairlead 1" - 100650.
- Shackle mounting lugs take recovery loads directly back to to the vehicle chassis. Shackle holes are 23.5mm diameter (before painting) to accept 7/8" or 22mm diameter pins.
- Wrap around bumper wings replicate the profile of the original bumper with a great rugged look.
- Front panel space to take vehicle number plate.
All components are manufactured from stainless steel and are supplied unpainted to allow you to apply your own preferred finish.
The kit includes all necessary fasteners but does not include winch, fairlead, shackles and number plate.
Couldn't load pickup availability
MORE DETAILS
Vehicle Requirements
Vehicle Requirements

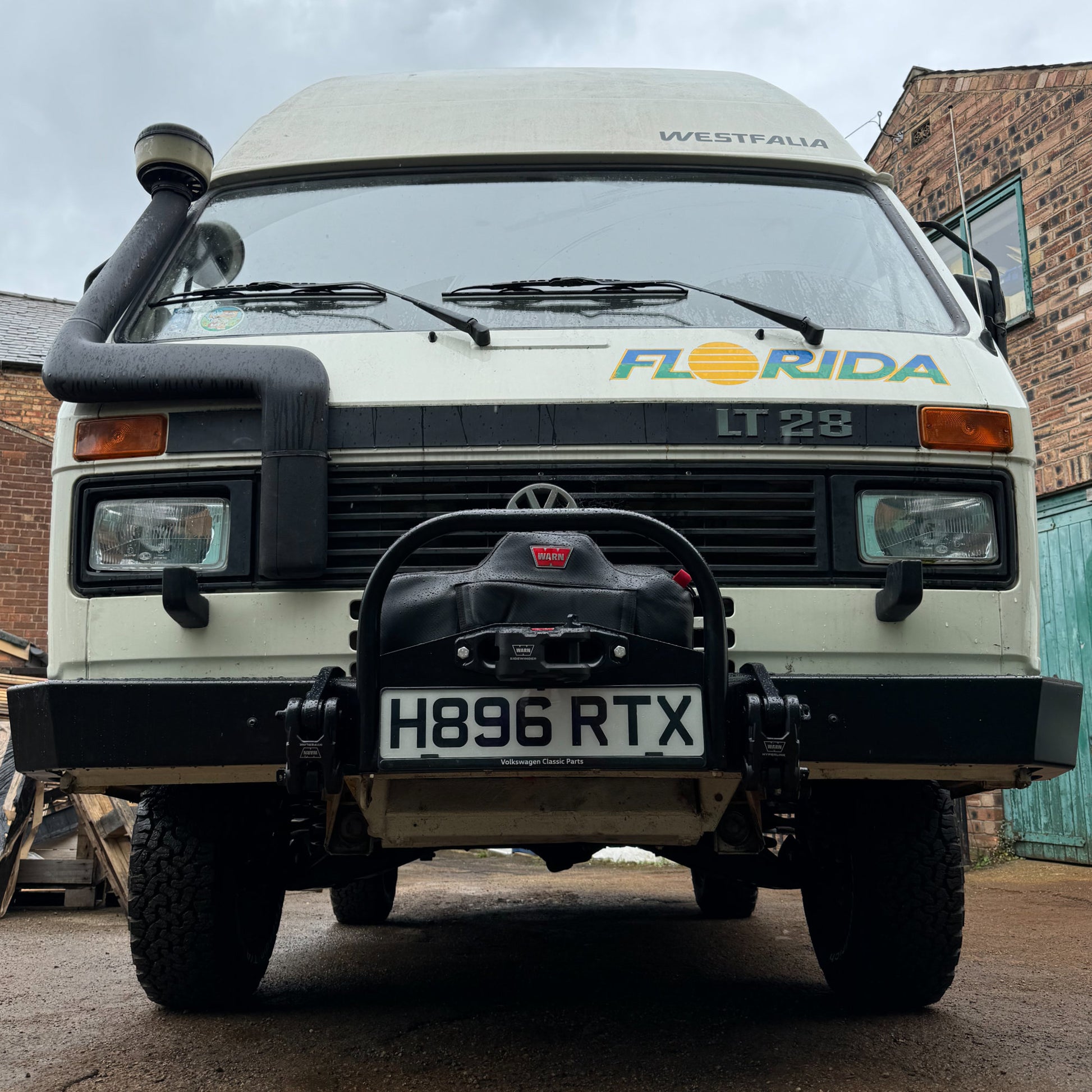

This bumper assembly fits Volkswagen LT1 vehicles.
Fits LT28, LT35, LT40, LT45, LT50 including 4x4 models.
Construction
Construction
This is a very robust product, manufactured from stainless steel throughout with the main shackle plates in 10mm thick material, winch supports in 5 & 10mm thick material and other bumper plates in 3mm material.
The central winch mount section and side bumper sections are fully welded.

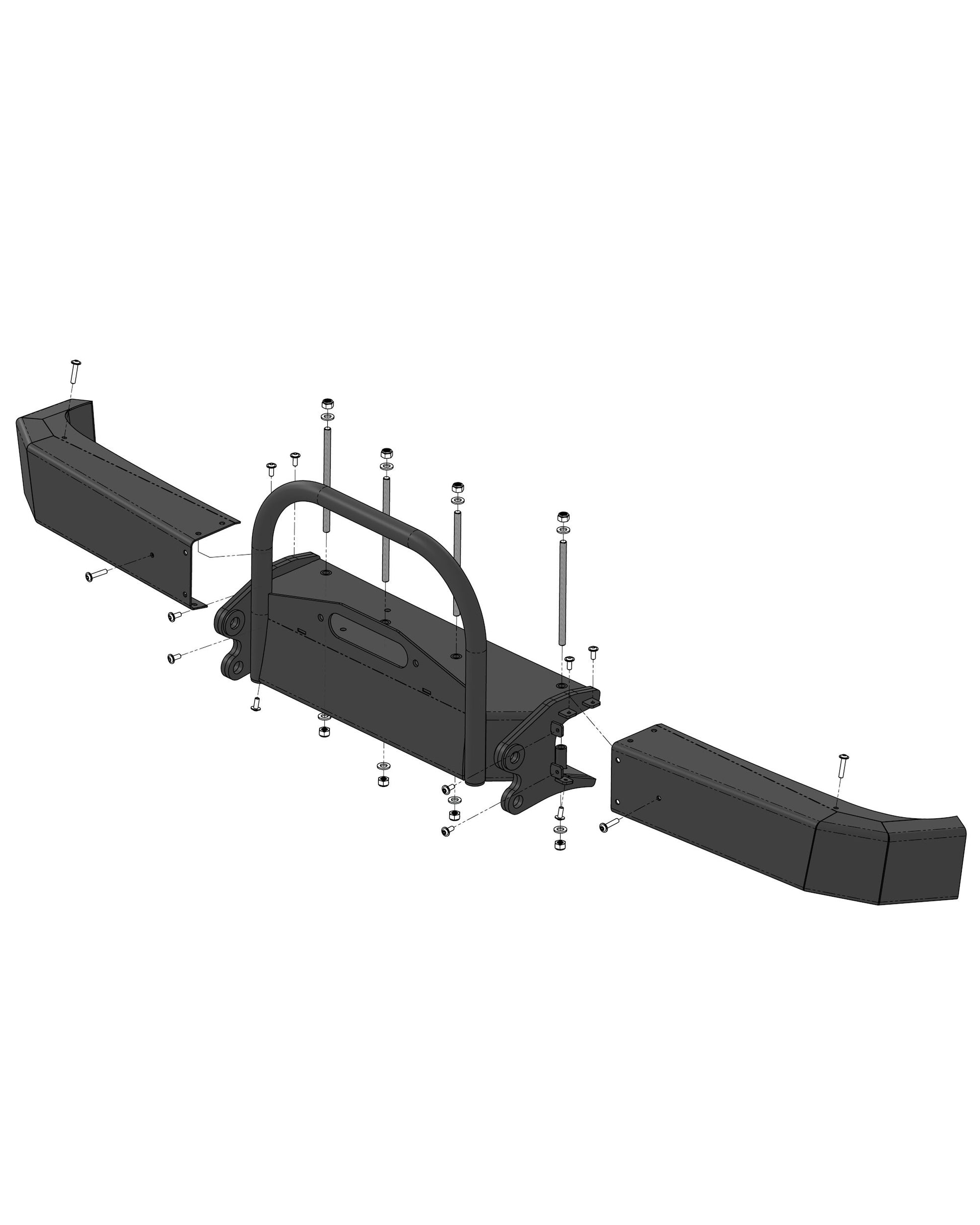

Side bumper sections are bolted to the central winch mount section and the vehicle chassis for ease of assembly and maintenance.
Made in Yorkshire
Made in Yorkshire
Designed and manufactured in Yorkshire, this bumper assembly is carefully designed to give your vehicle rugged Yorkshire appeal. It is also a practical recovery mounting to make sure you can travel the moors and mountains in safety.
Fitting Instructions
Fitting Instructions
Installation
Installation
It is important that you test fit and assemble this kit BEFORE painting or powder coating to ensure that everything fits correctly. We cannot accept product returns that have been painted first then found to not fit your vehicle.
Installation is straightforward and the main steps are:
- Remove the existing front bumper.
- Fit the central winch mount unit to the chassis structure by drilling through the existing chassis plates and bolting the central unit firmly in place.
- Bolt the side bumpers to the central section.

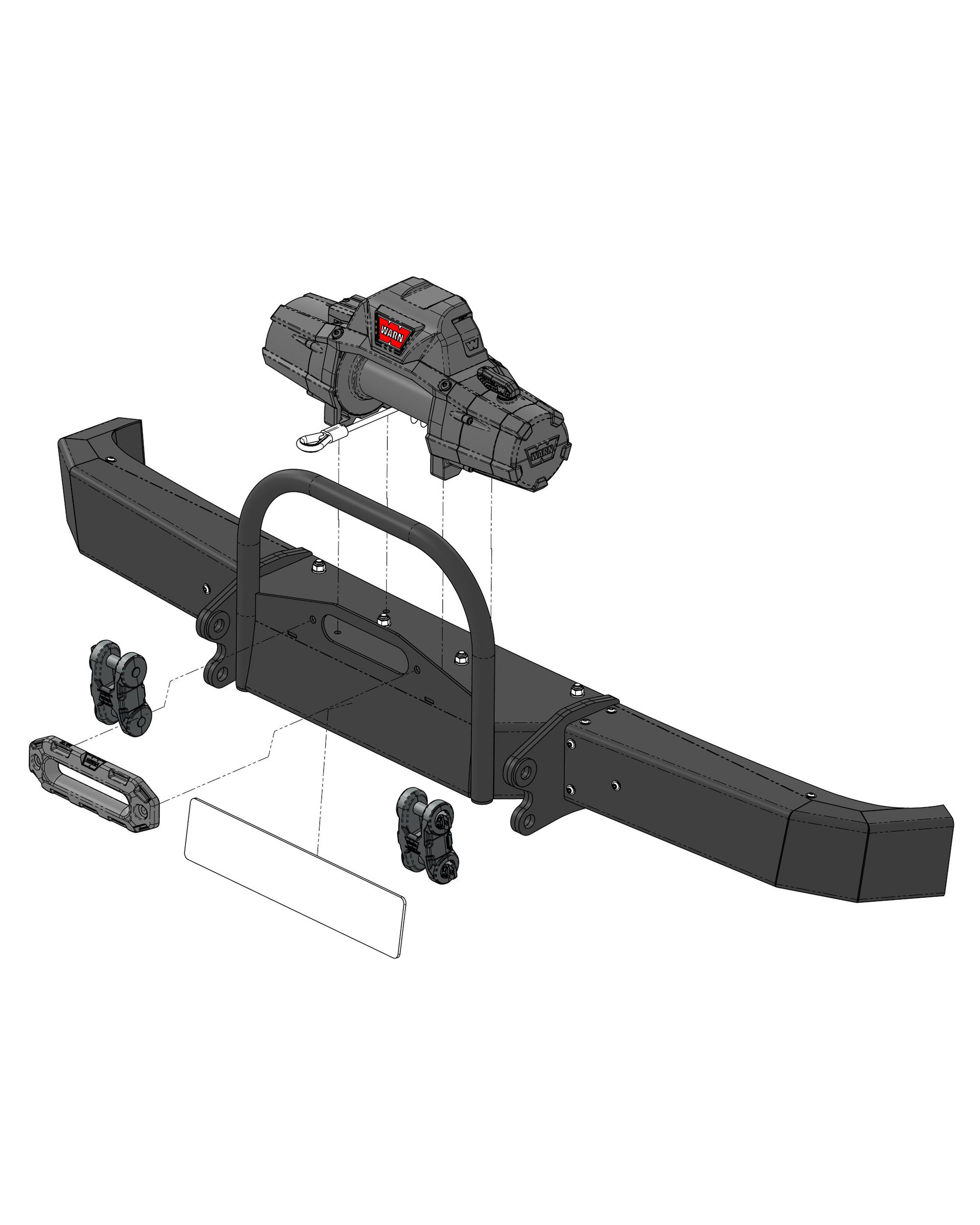

- Fit your winch, fairlead and shackles. (These are not include in our kit.)
Lead Time
Lead Time
This product is made to order, typically on a 4 week lead time. Once you place your order we will schedule it into production and complete it as soon as possible.
