MERCEDES T1/TN REAR DOOR SPARE WHEEL CARRIER 1977–1995

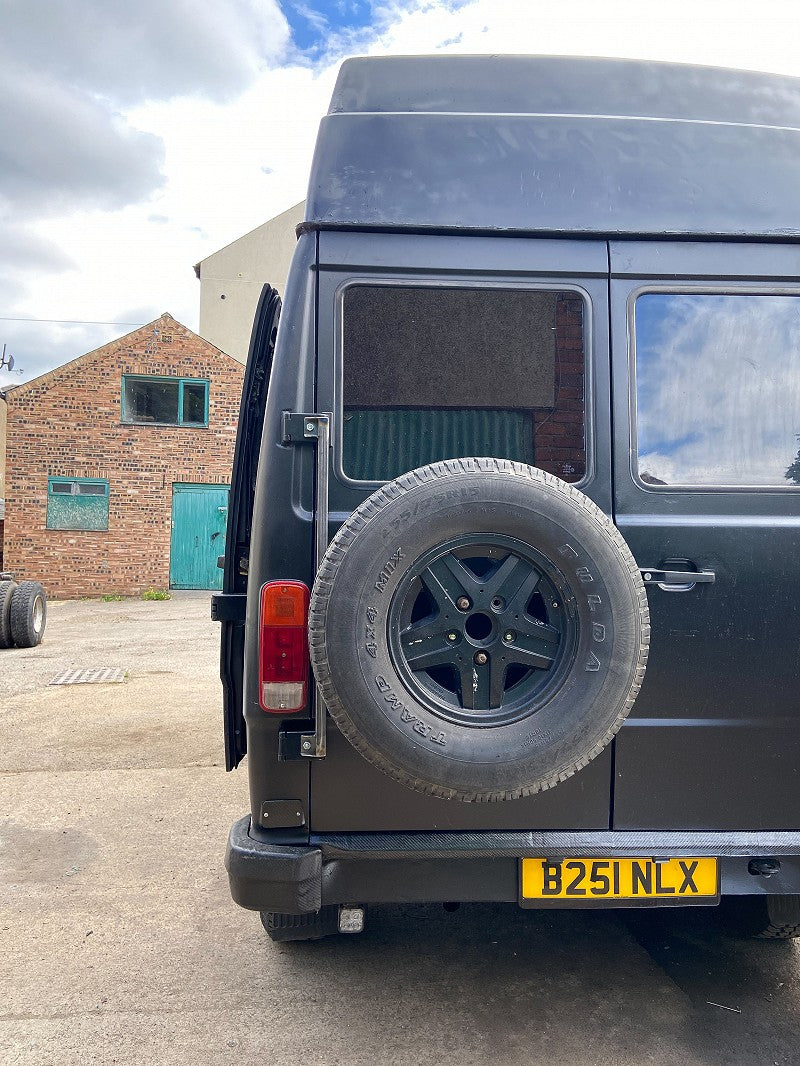

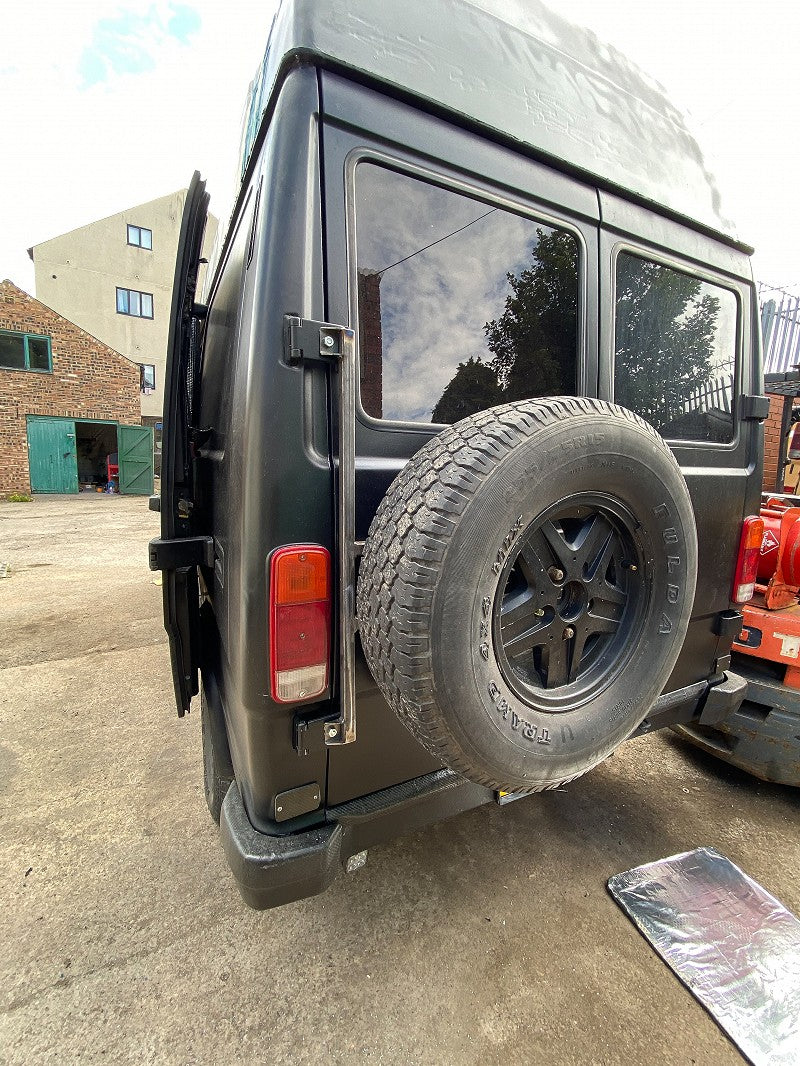

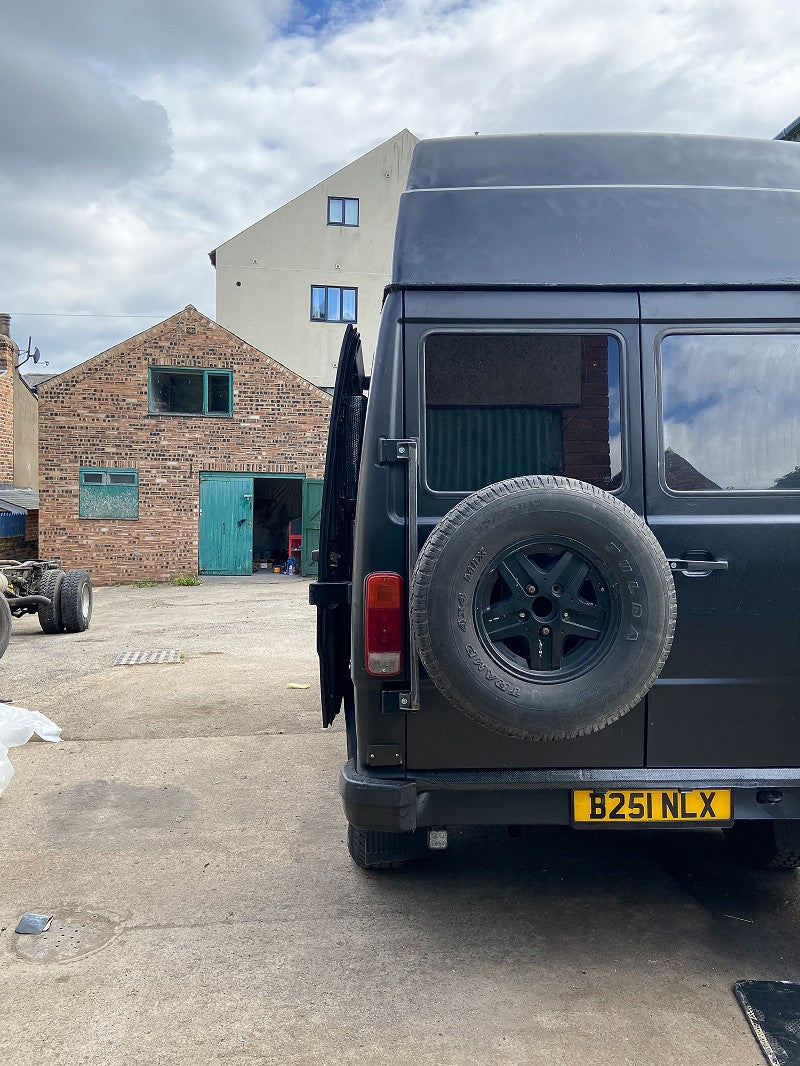

This jig built spare wheel carrier mounts to the back of the door on your Mercedes T1. Please check your hinges are the same as shown in the photos. If they aren’t please get in touch and we will be able to help.

The holder accepts 5x130 wheels as is standard on these.

You need to drill one 10mm hole in the middle of each hinge, and one the the door skin on the right hand side of the door. A very straightforward install.

Included are all fixings required to mount the carrier to the door. You will need to source wheel bolts to fit into the m14x1.5 tapped holes in the carrier.

The bracket is supplied bare for you to paint what ever colour you wish, and is built to order so please allow up to 2 weeks for delivery. If you need one more urgently please get in touch! Always test fit any bolt-on product before painting to be sure it fits. We will not reimburse for painting if the part is not test fitted prior to painting.

These carriers are absolutely solid on the door.

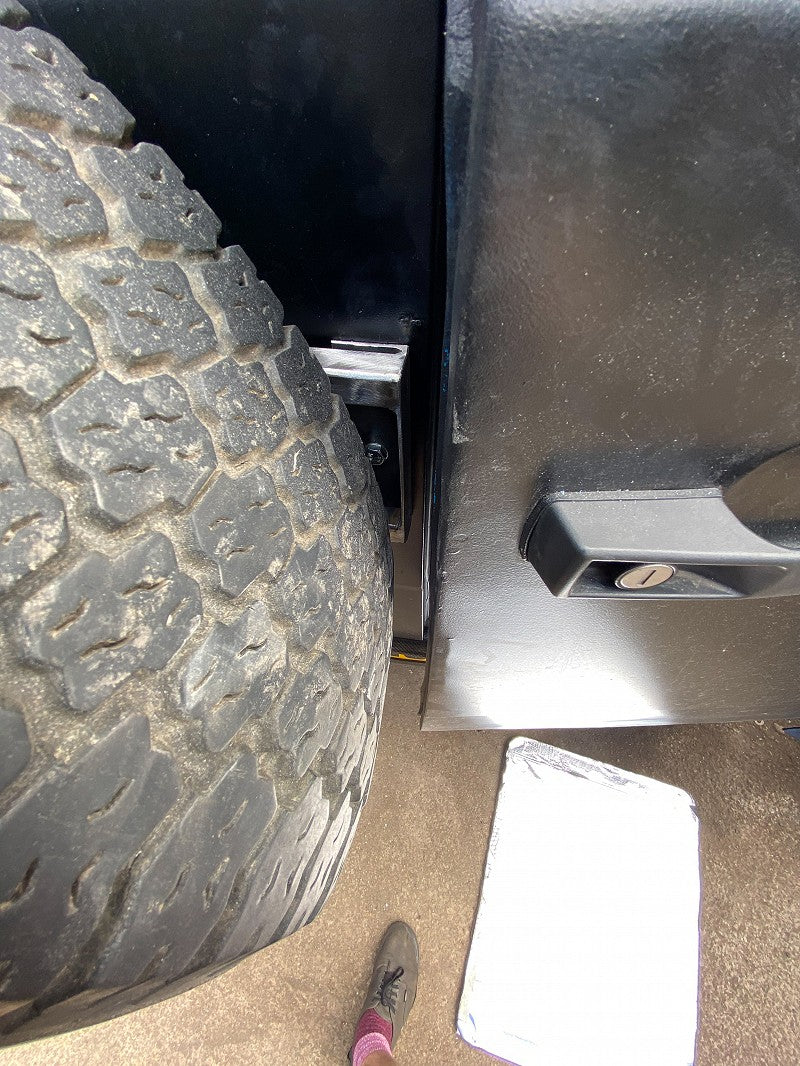

All drilled holes will require any bare metal painting to prevent corrosion. We also bond the door skin mount and the door skin which removes the point load off the bolts whilst also sealing up the hole to prevent water ingress.
