FORD TRANSIT CUSTOM 2012-2024 Wheel Carrier - LH

Fits:

• Ford Transit Custom with Barn Doors (2doors) 2012-2024
• Fits all height vans

The wheel plate on this Wheel Carrier has 5 holes each with an M14x1.5 thread on a 160mm diameter.

• Product weight: 8KG
• MIG welded using lightweight Mild Steel ERW tube
• Jig Built
• Lasercut and CNC formed components
• Supplied uncoated for you to finish before installation

We are always inspired by the wonderful landscape of Yorkshire and here, on the edge the North Yorkshire Moors National Park, the Wheeliams team design and manufacture a great range of innovative Vanlife and Overlanding products.

Using state-of-the-art  3D design software our team carefully develop and test new ideas.  These are then manufactured by our skilled in-house production team and, after rigorous quality checks, are shipped all over the world.

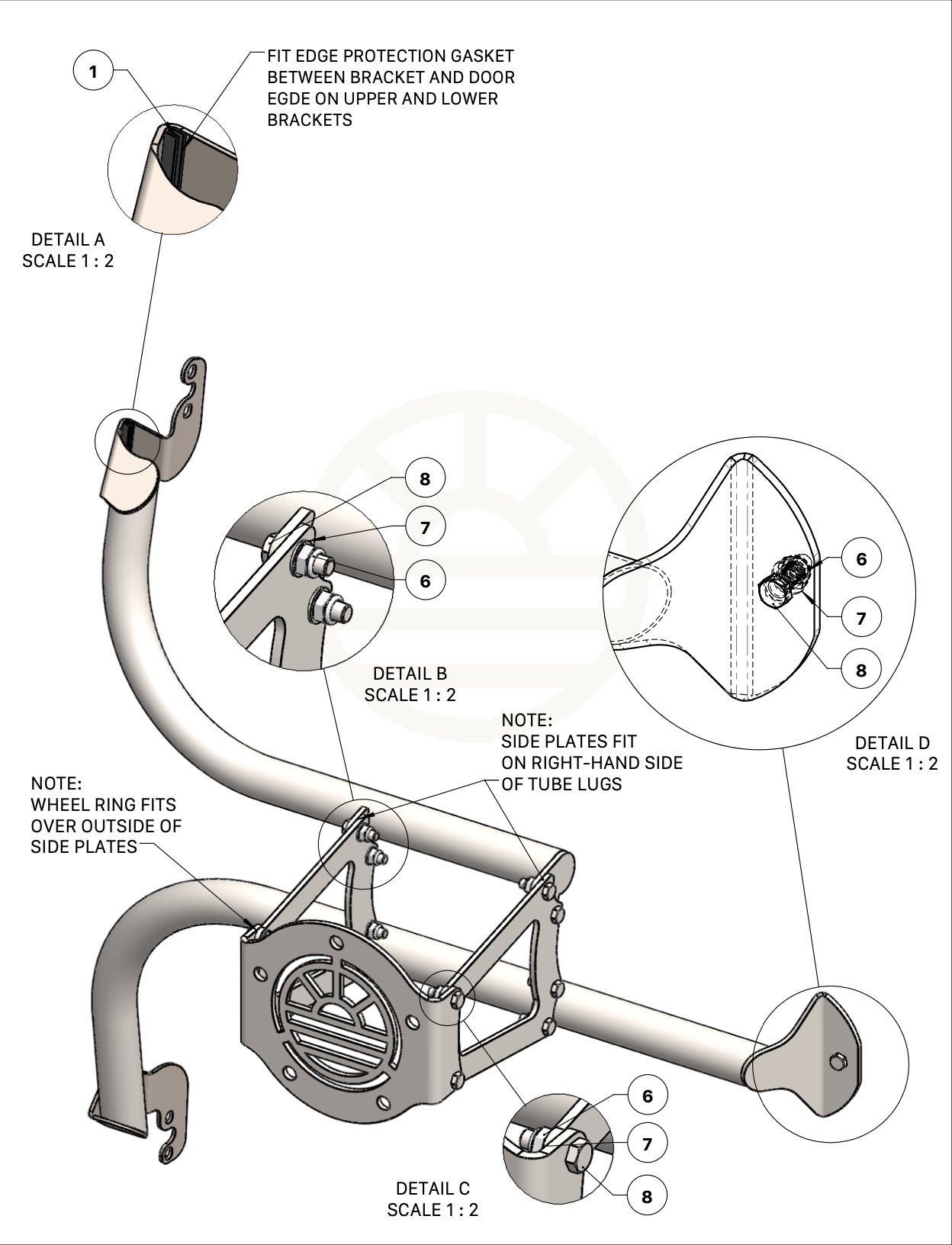

You can download the full installation instructions HERE.

Fixings required to fit the wheel carrier to the van are supplied.

Wheel Carriers bolt to the existing hinges on the door and requires one hole drilling in the skin of the door. This wheel carrier can be fitted to vans with either 180 or 270degree hinges.

The carrier bolts to door using the factory Ford door hinge bolts. The door does NOT need removing to fit this.

Always test fit any bolt-on product before painting. We will not reimburse for painting if the part is not test fitted prior to painting.

All drilled holes will require any bare metal painting to prevent corrosion. We also bond the door skin mount and the door skin which removes the point load off the bolts whilst also sealing up the hole to prevent water ingress.

You can download the full installation instructions HERE

Wheel carriers are made to order; typically on a 10-day lead time. Following an order, your wheel carrier is added to our production planner and we aim manufacture and ship your order as quickly as possible.
