VAUXHALL VIVARO - Rear Door Ladder
VAUXHALL VIVARO - Rear Door Ladder

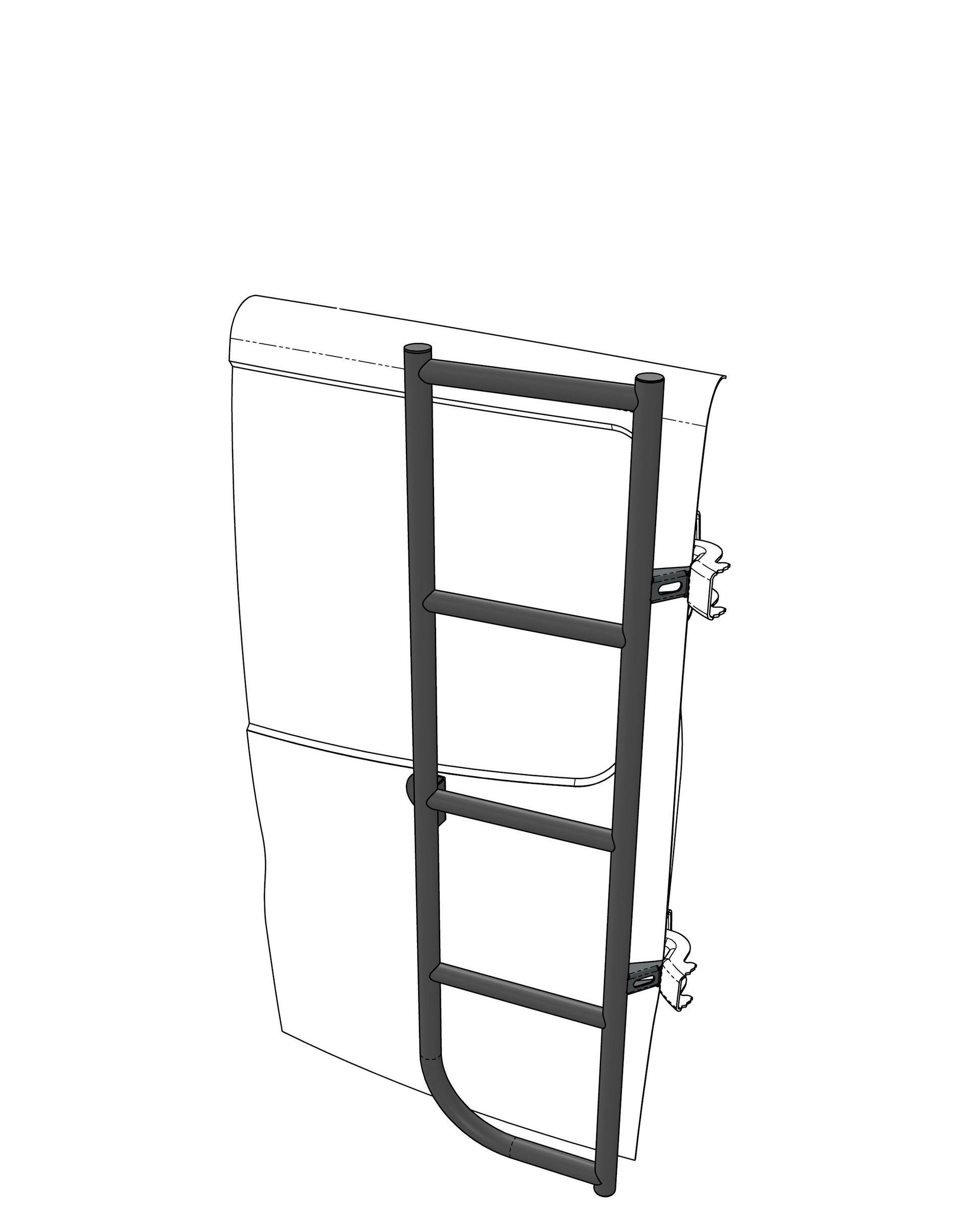

Rear hinge and door mounted ladder for all vehicle variants
A robust tubular mild steel ladder designed to fit Vauxhall Vivaro, Renault Traffic and Nissan Primastar vans from [2001 - 2014]. These ladders are supplied unpainted for you to finish as you wish to match your vehicle.
We have four variants of this ladder to suit High and Low roof vehicles and both left and right hand fitting.
Ladders for low roof vehicles have a flat top to maximise the space available for fitting accessory rails and bike mounts. High roof ladders taper inwards slightly to allow for the roof profile of the vehicle.
Verfügbarkeit für Abholungen konnte nicht geladen werden
MORE DETAILS
Vehicle Requirements
Vehicle Requirements
Fits:
Vauxhall Vivaro - 2001-2014
Nissan Primastar - 2001-2014
Renault Traffic - 2001-2014
and are suitable for low (H1) and high (H2) roof variants. Body length does not affect ladder fitting.
Ladder installation does not affect factory fitted rear parking sensors.
Construction
Construction
The ladder frame is mild steel tube and mounting brackets are laser cut and formed mild steel plate.
This product is supplied unpainted for you to paint or powder-coat as you wish.
Made in Yorkshire
Made in Yorkshire
Our ladders are all designed and manufactured in Yorkshire and have a reputation for rugged reliability.
Fitting Instructions
Fitting Instructions
Installation
Installation
Ladders are installed with connections to the existing rear doors hinges and the skin of the door. This gives a simple proven and stable ladder connection to the vehicle. You do not need to remove the door or loosen the hinges for this installation.
It is important that you test fit and assemble this ladder BEFORE painting or powder coating to ensure that everything fits correctly. We cannot accept product returns that have been painted first then found to not fit your vehicle.
Installation is straightforward and has the following key steps:
- Remove the internal door card to allow access to the space within the door.
- Offer the ladder up to the vehicle hinges and position the hinge connection brackets so that they sit vertically central on the inner hinge faces.
- Mark the position of the mounting holes on the hinges.
- Drill the hinges Ø9mm at these positions.
- Bolt the ladder to the hinges and then mark the panel bracket hole position on the face of the door.
- Drill through both door skins at this position.
- Bolts the ladder in place and check that everything is aligned correctly.
- Remove the ladder and paint or powder-coat as required.
- Paint any drilled holes in the vehicle to reduce corrosion risk.
- Finally re-fit the painted ladder also bonding the panel bracket to the door panel to spread the load and seal the door.
Lead Time
Lead Time
Our Ladders are all made to order, usually on a 4 week lead time. Once you place your order we will schedule it into production and manufacture and ship it as soon as possible.
