MERCEDES T2 1986-1995, VARIO 1995-2013 Front Bumper & Winch Mount
MERCEDES T2 1986-1995, VARIO 1995-2013 Front Bumper & Winch Mount
A great off-road add-on!

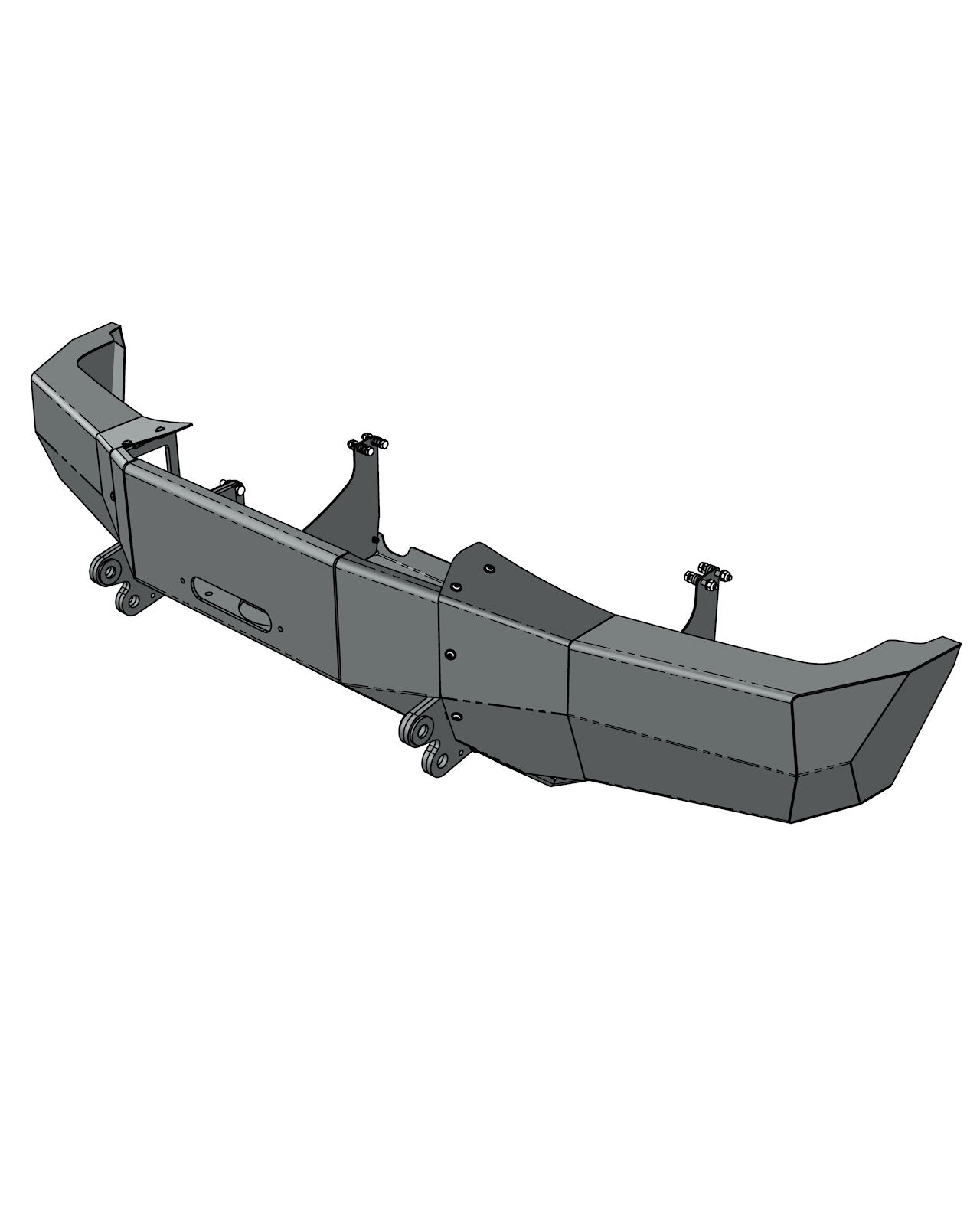

This bumper assembly replaces the standard front bumper with a robust bumper assembly having some great features:
- Central shielded winch mount tied back to the vehicle main chassis members. Designed to accept the Warn 16.5ti Heavyweight Winch - 68801 and capable of mounting other similar winches.
- Integral Fairlead slot designed for the Warn Epic Hawse Fairlead 1" - 100650.
- Dual shackle mounting lugs take recovery loads directly back to to the vehicle chassis. Shackle holes are 23.5mm diameter (before painting) to accept 7/8" or 22mm diameter pins.
- Integral sump guard not included.
- Wrap around bumper wings replicate the profile of the original bumper with a great rugged look.
All components are manufactured from stainless steel and are unpainted to allow you to apply your own preferred finish.
The kit includes all necessary fasteners but does not include winch, fairlead and shackles.
Verfügbarkeit für Abholungen konnte nicht geladen werden
MORE DETAILS
Vehicle Requirements
Vehicle Requirements
This bumper assembly fits to MERCEDES T2 1986-1995, VARIO 1995-2013 vehicles.
Construction
Construction
This is a very robust product, manufactured from stainless steel throughout with the main shackle plates in 10mm thick material, winch supports in 6 & 8mm thick material and other bumper and guard plates in 3mm material.
The central winch mount section and side bumper sections are fully welded.

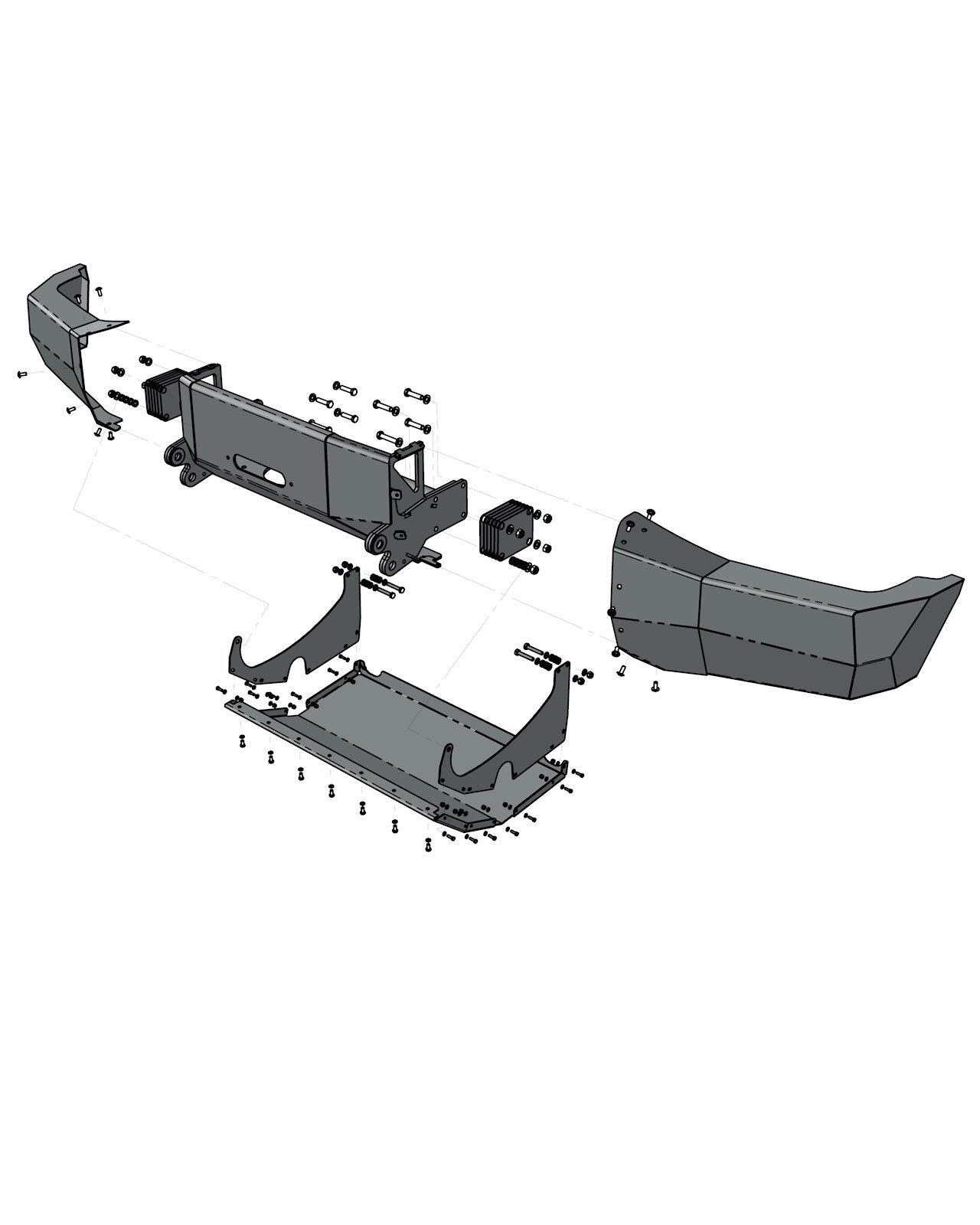

Side bumper sections and sump guard are bolted to the central winch mount section for ease of assembly and maintenance.
Made in Yorkshire
Made in Yorkshire
Designed and manufactured in Yorkshire, this bumper assembly is carefully designed to give your vehicle rugged Yorkshire appeal. It is also a practical recovery mounting to make sure you can travel the moors and mountains in safety.
Fitting Instructions
Fitting Instructions
Installation
Installation
It is important that you test fit and assemble this kit BEFORE painting or powder coating to ensure that everything fits correctly. We cannot accept product returns that have been painted first then found to not fit your vehicle.
Installation is straightforward and the main steps are:
- Remove the existing front bumper.
- Remove the lateral tube that ties the ends of the main chassis rails together.
- Fit the central winch mount unit to the chassis rails in place of the lateral tube using the spacers supplied as required to ensure that the unit clamps up firmly.
- Bolt the side bumpers to the central section.
- Fit your winch, fairlead and shackles. (These are not include in our kit.)
Lead Time
Lead Time
This product is made to order, typically on a 4 week lead time. Once you place your order we will schedule it into production and complete it as soon as possible.
