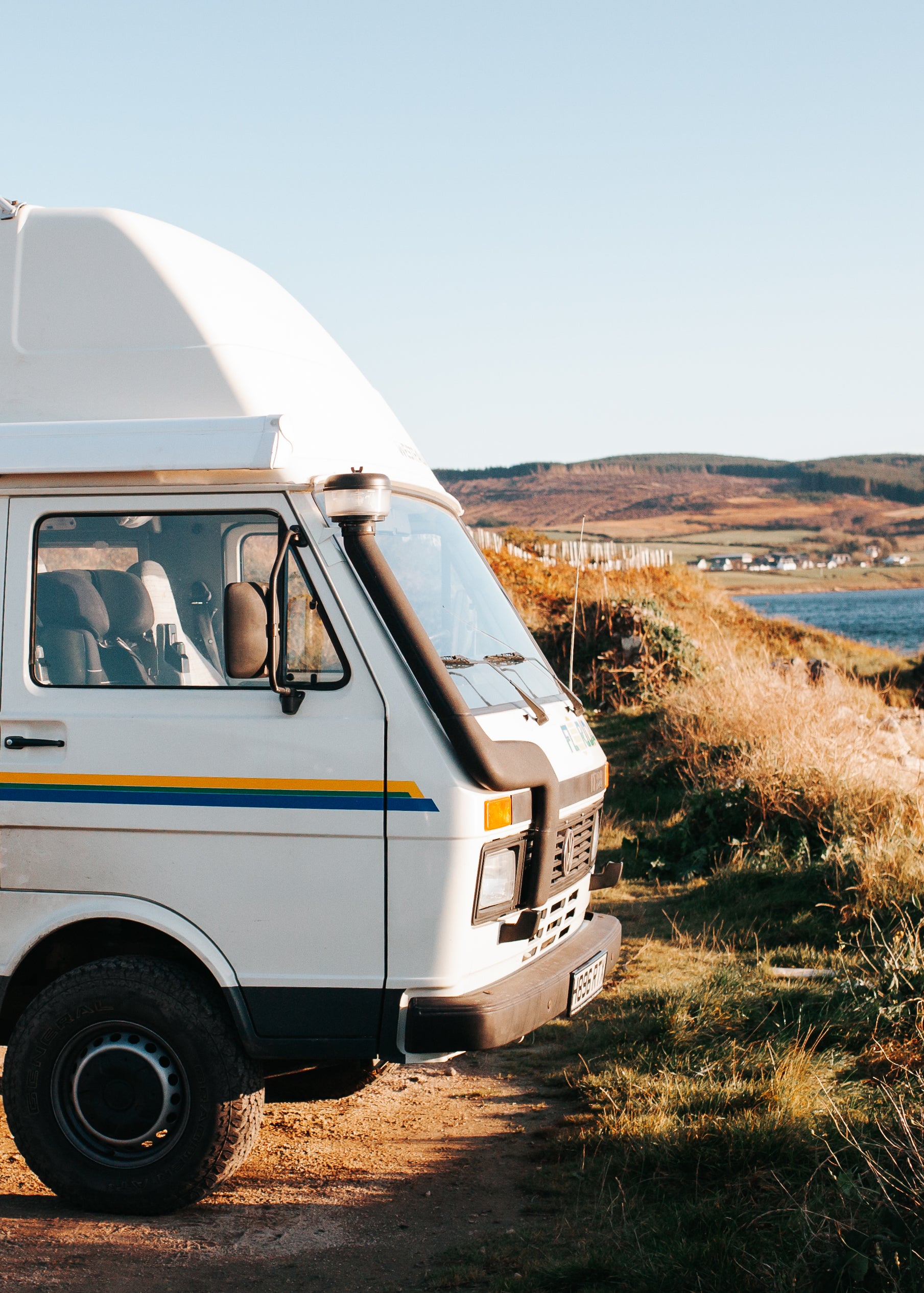

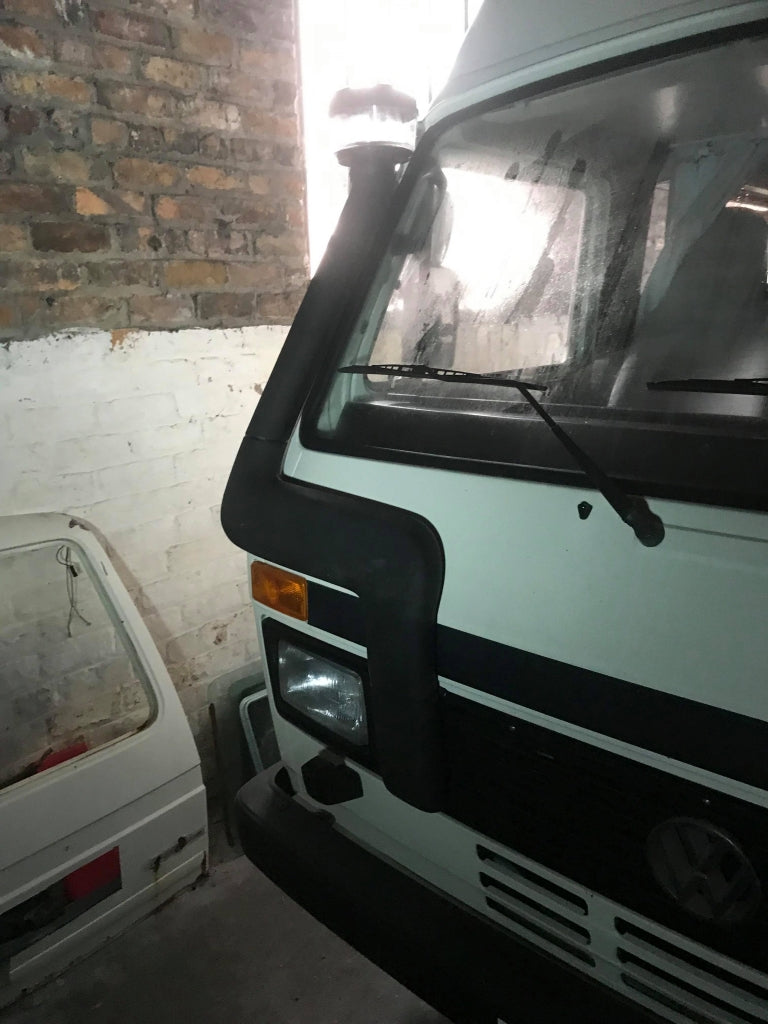

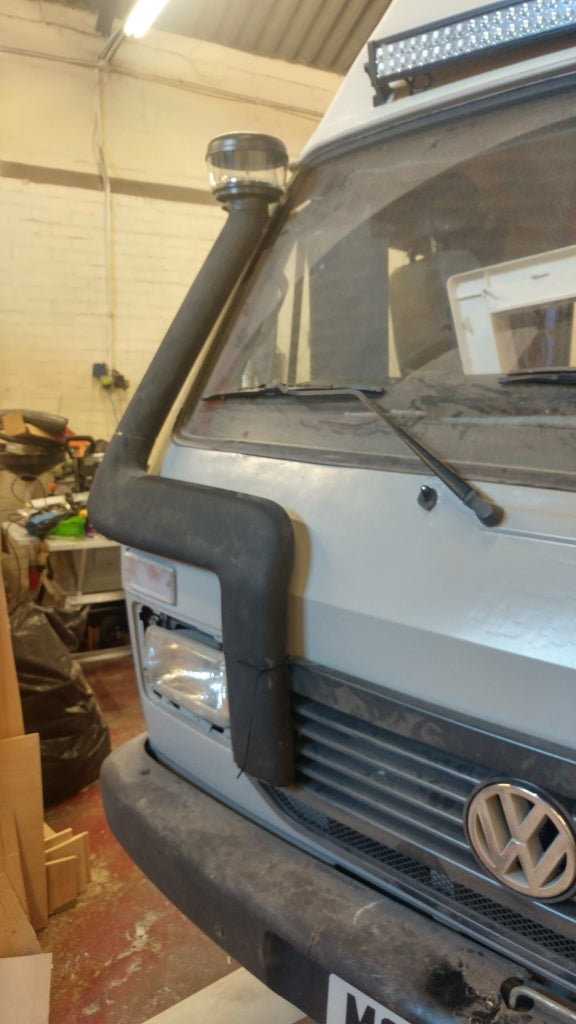

Volkswagen LT MK1 Snorkel Kit 4x4 1:1 reproduction of original
Volkswagen LT MK1 Snorkel Kit 4x4 1:1 reproduction of original

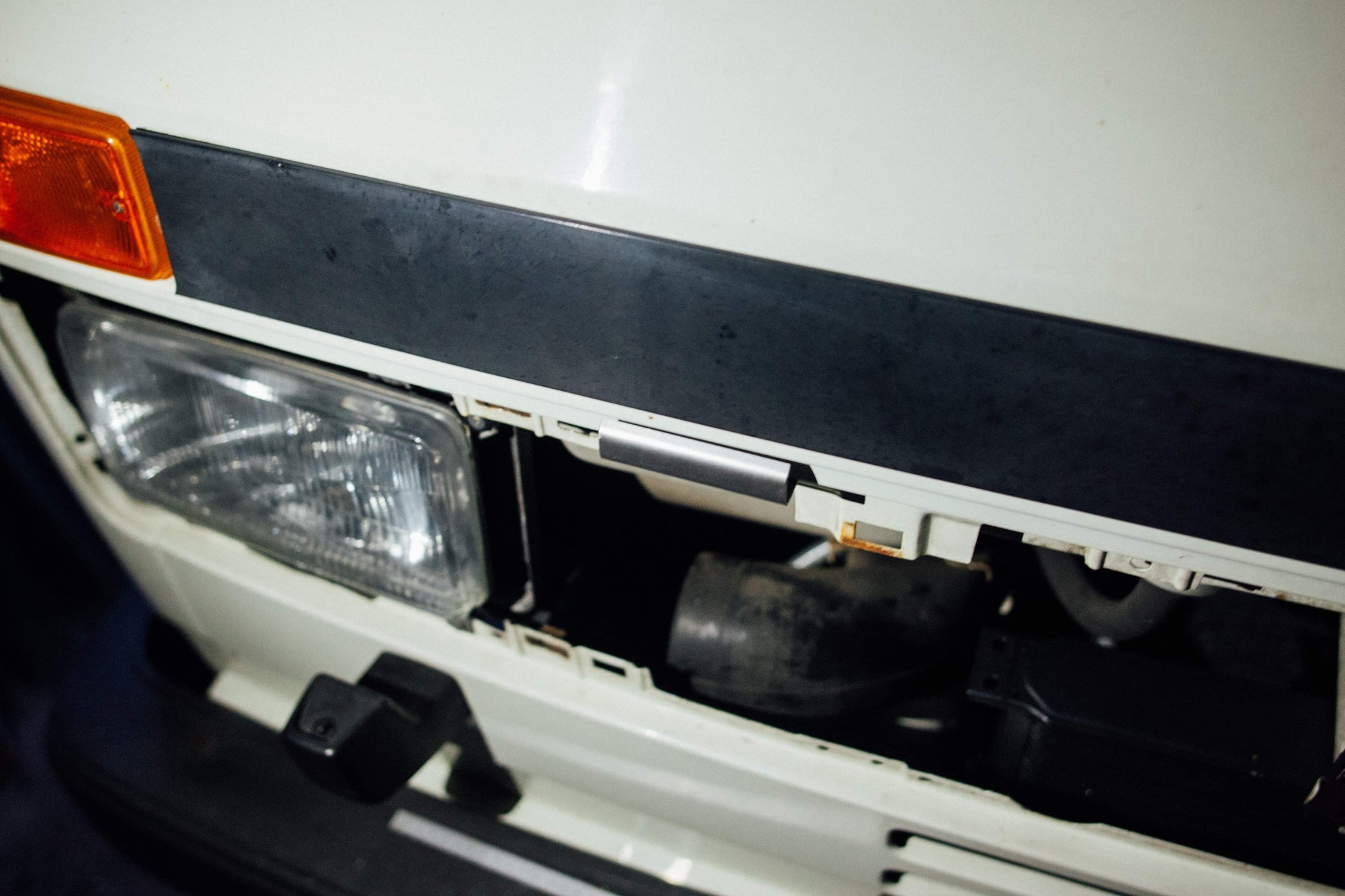

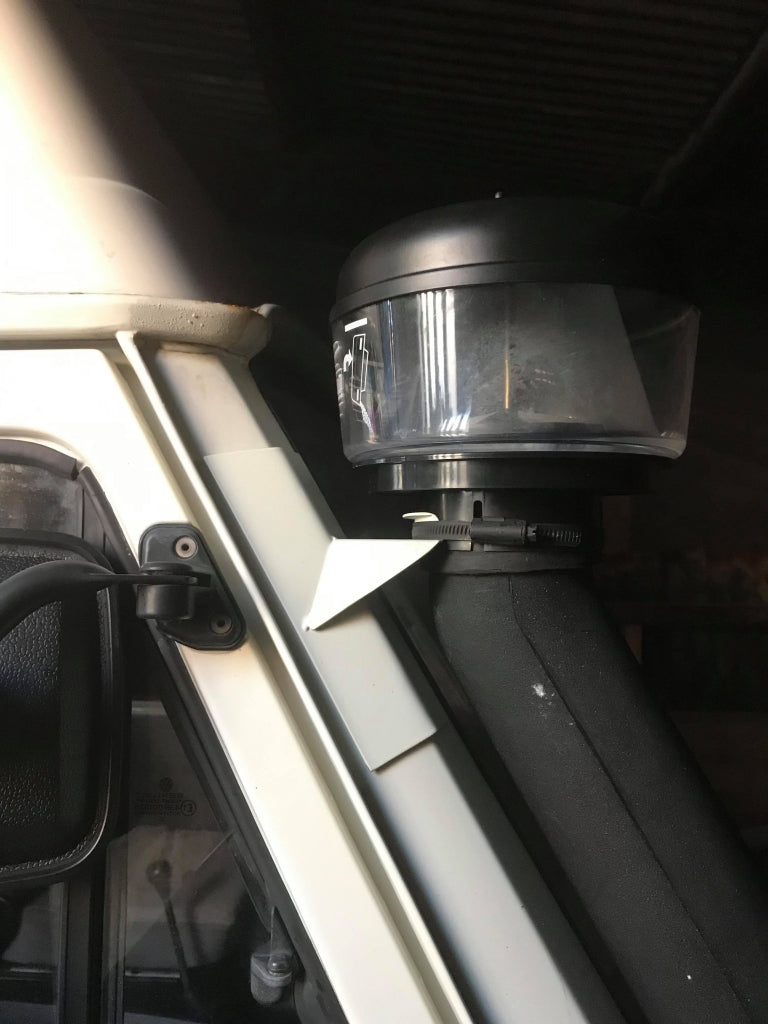

Comprising of an HDPE tube (to mount from a hole that you will need to cut in the grill and run up the A pillar), the flexi pipe to run from the existing air duct behind the grill, 2 brackets (one for the grill and one for the A pillar – the former must be drilled but is hidden behind the grill, the latter can be stuck or drilled), a cyclone pre-filter head (not OEM) and 3 jubilee clips (2 silver, one black for the cyclone head). Fits both pre-and post-facelift versions. Post-facelift will need the grill cutting for the lower bracket.
Fits:
Volkswagen LT 1976-1996 with square headlight grill. Face lift and Pre Facelift.
Kit Contents:

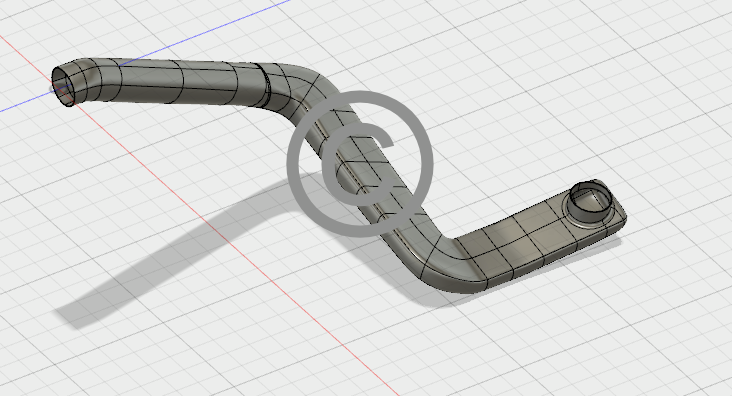

HDPE Snorkel Tube

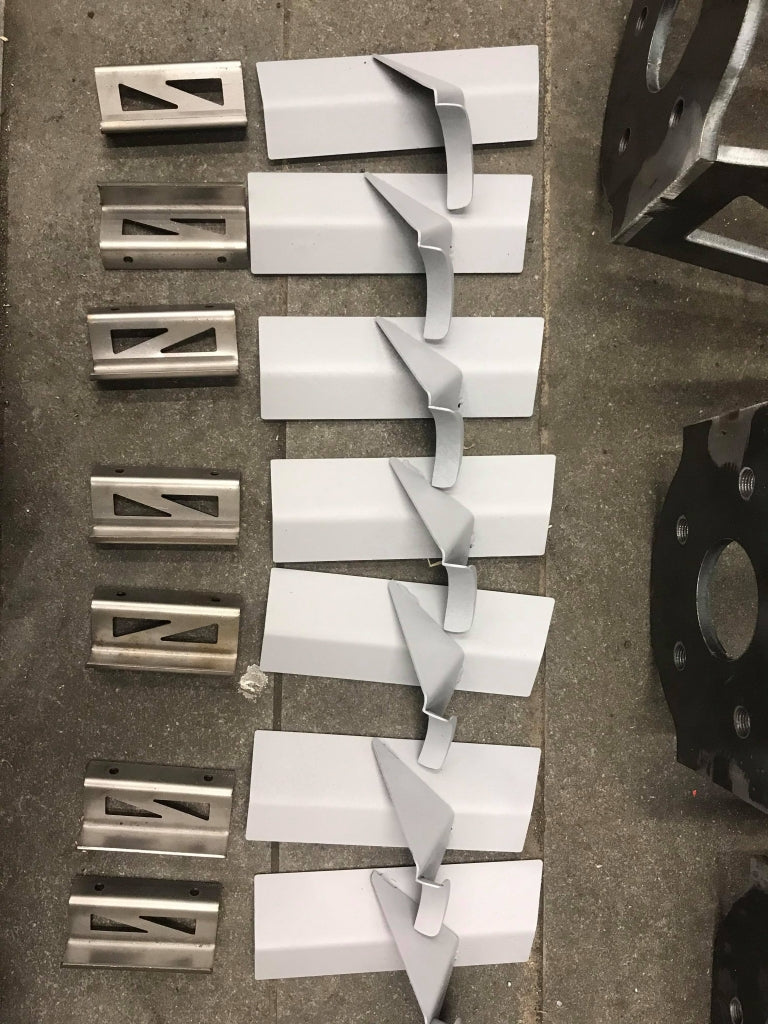

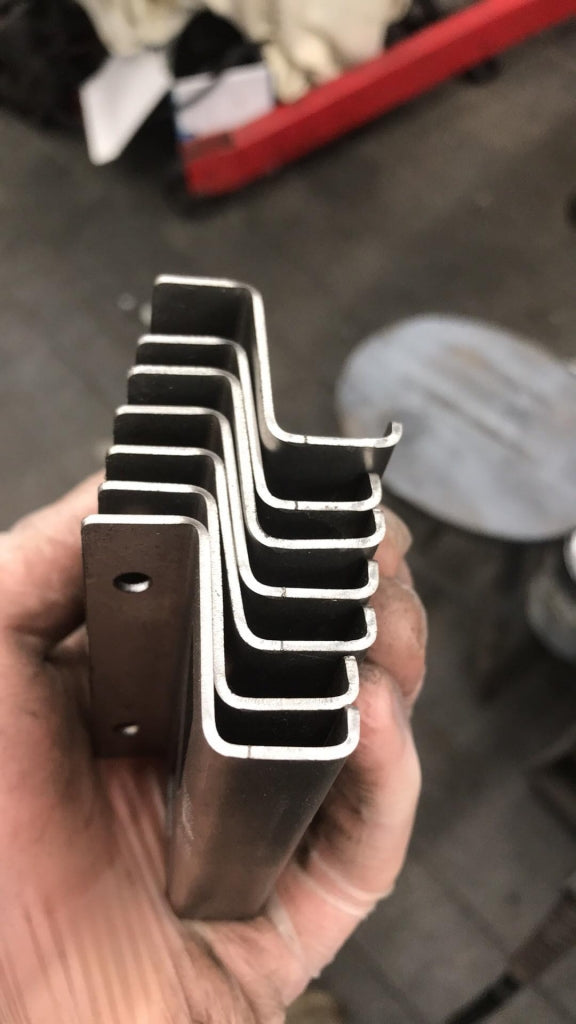

Two fabricated snorkel brackets
Flexi Air Pipe
3 Jubilee Clips

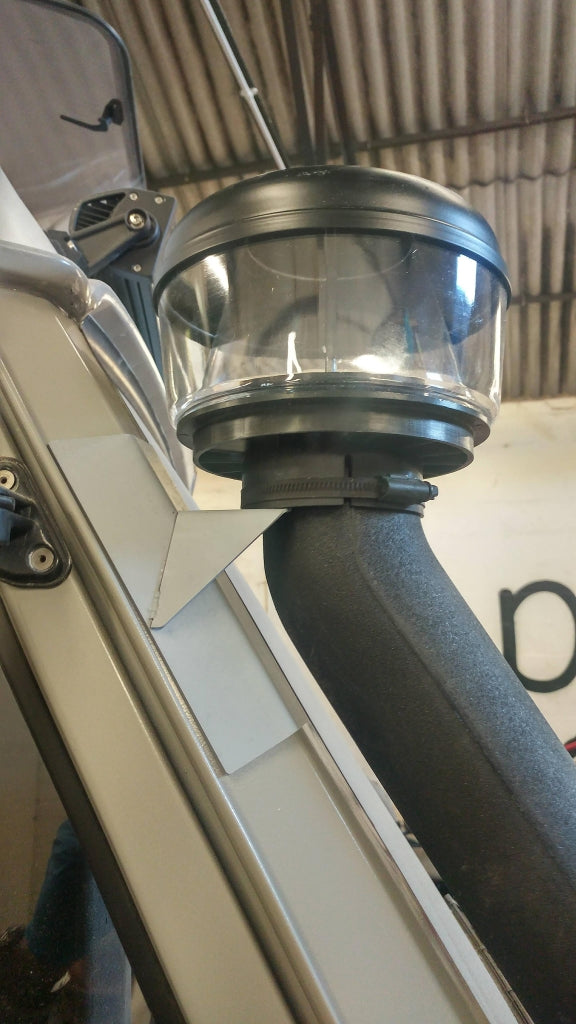

Cyclone Filter (Not OEM)
Snorkel ONLY Contents:
HDPE Snorkel Tube

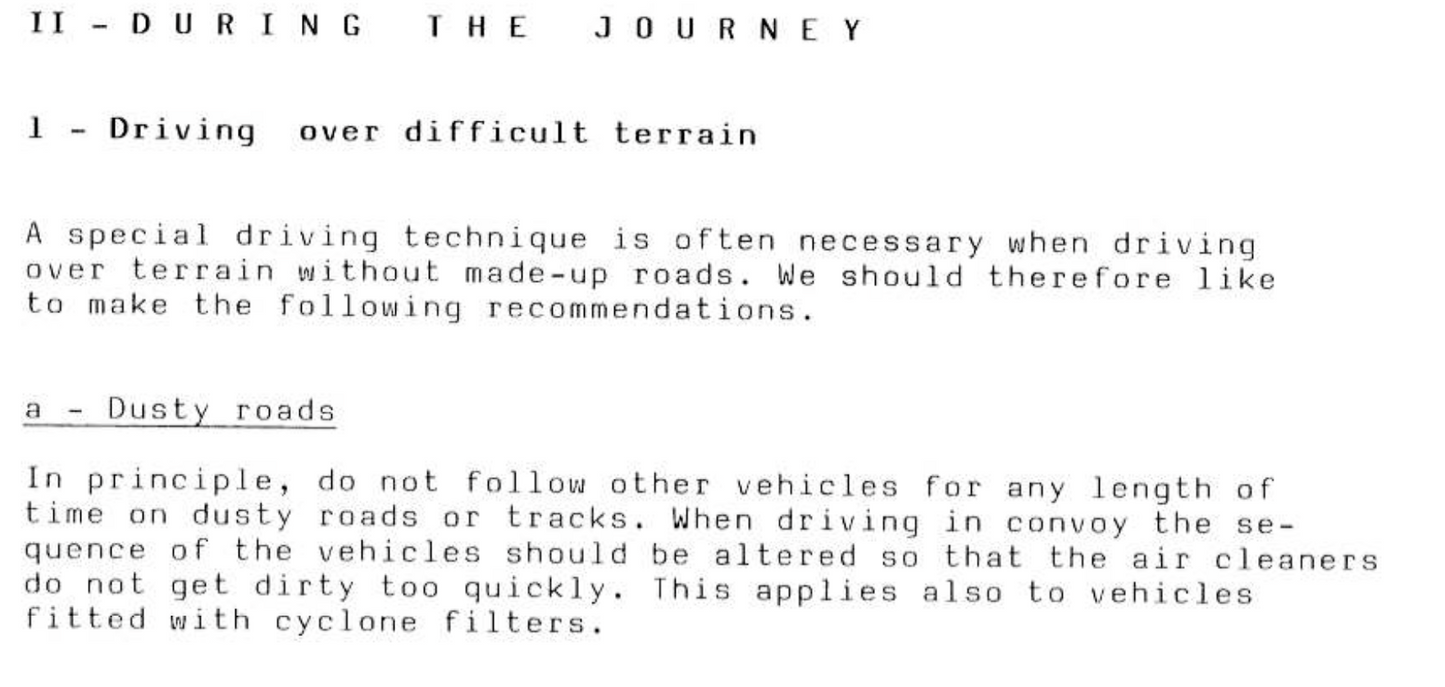

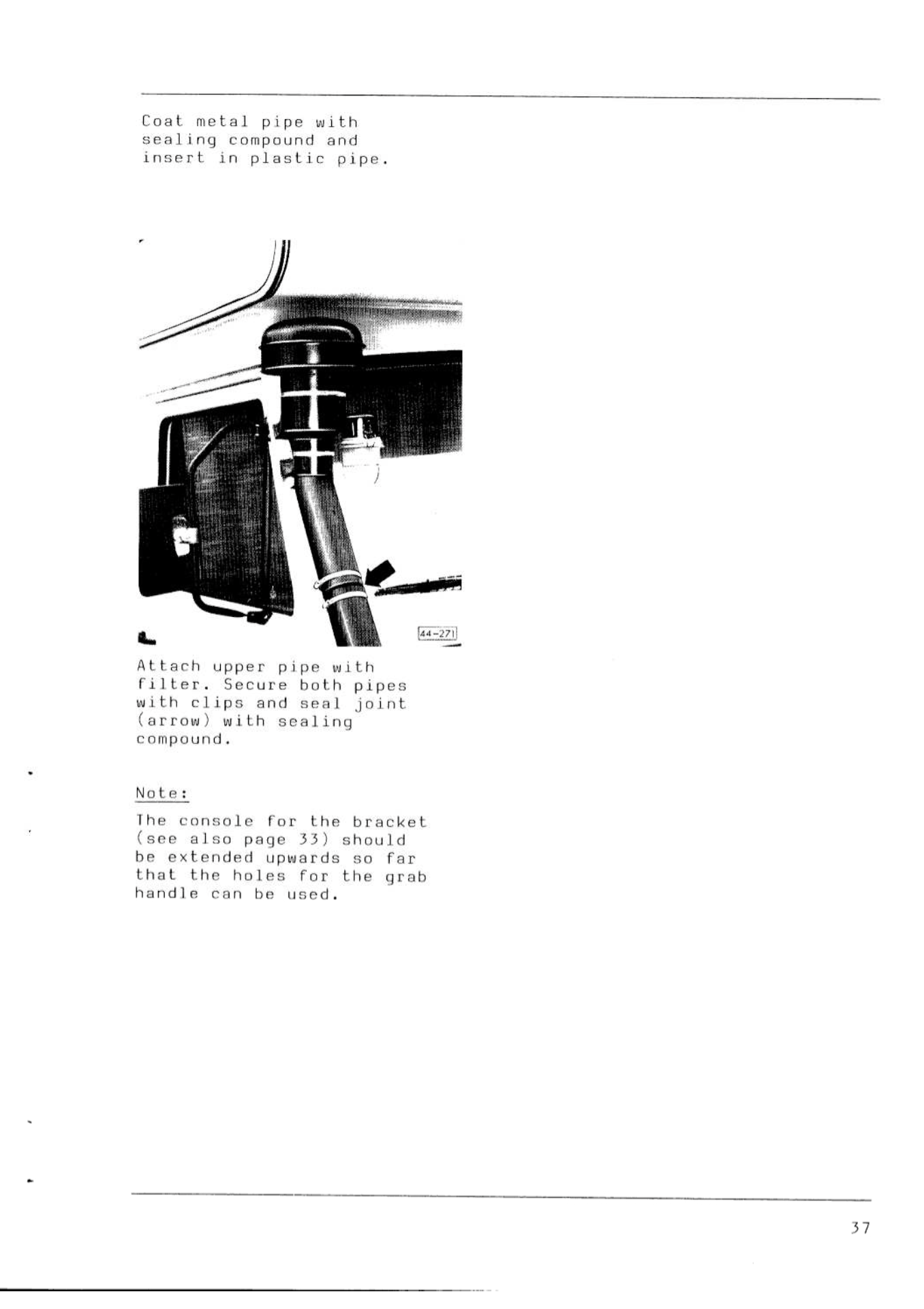

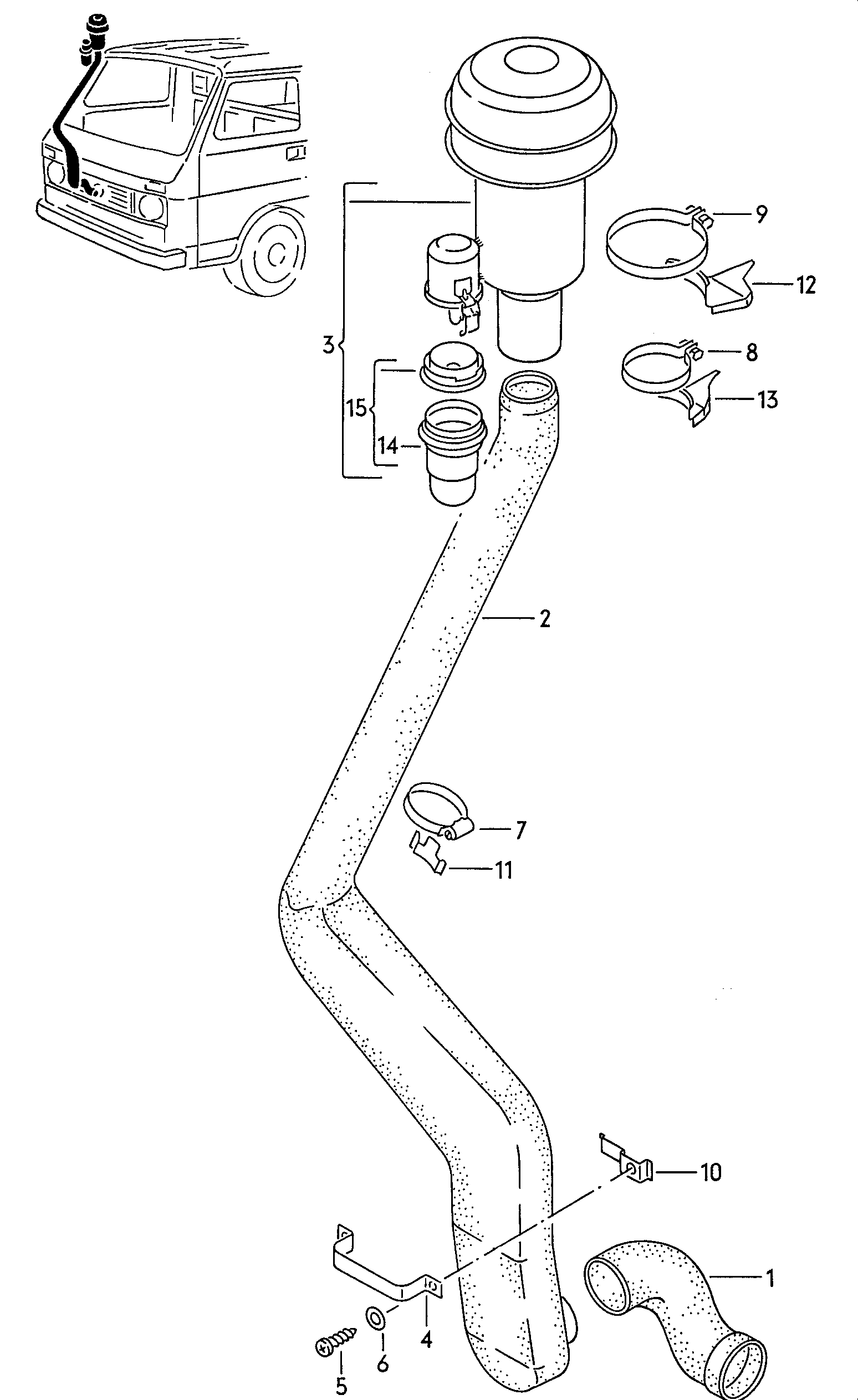

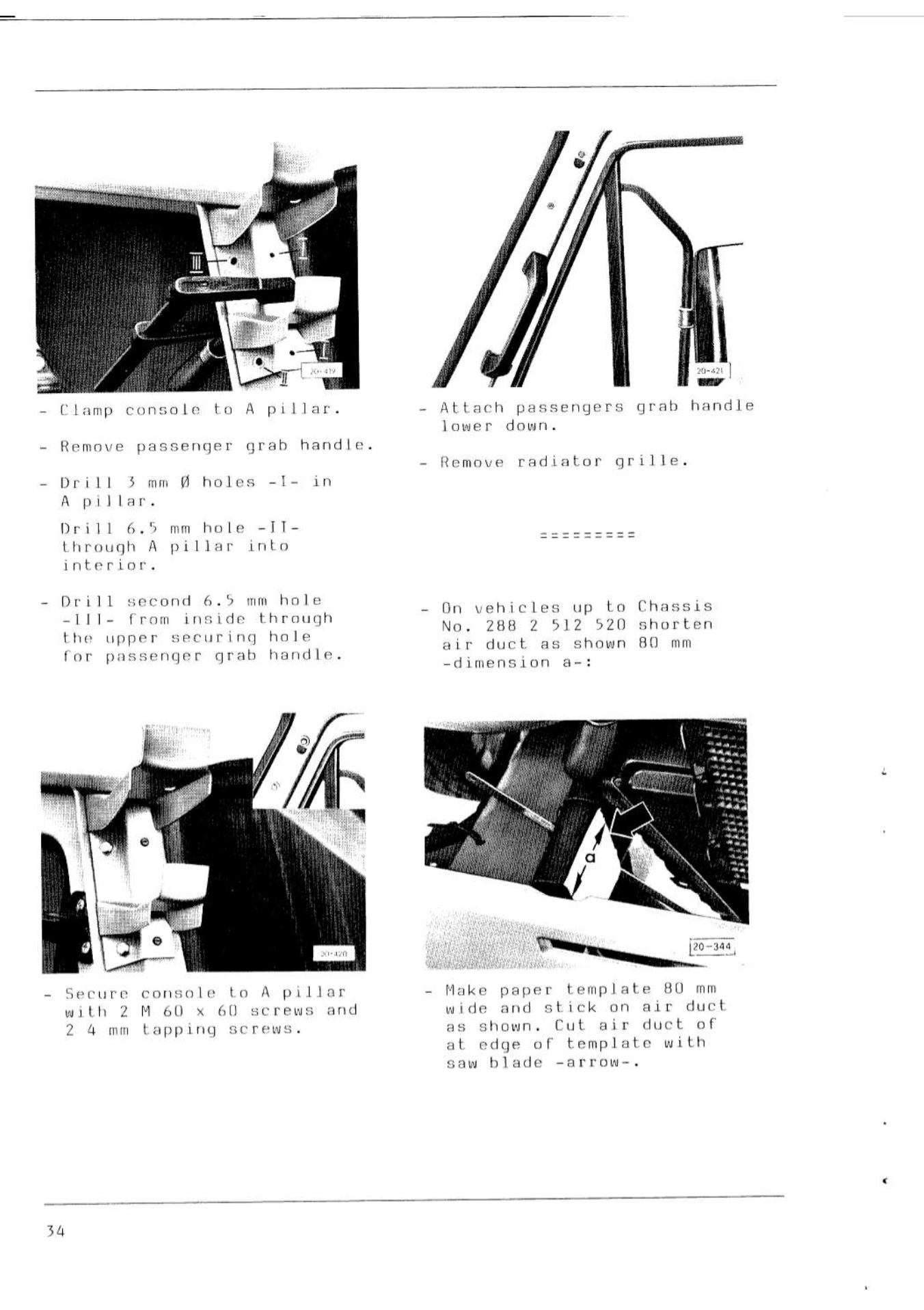

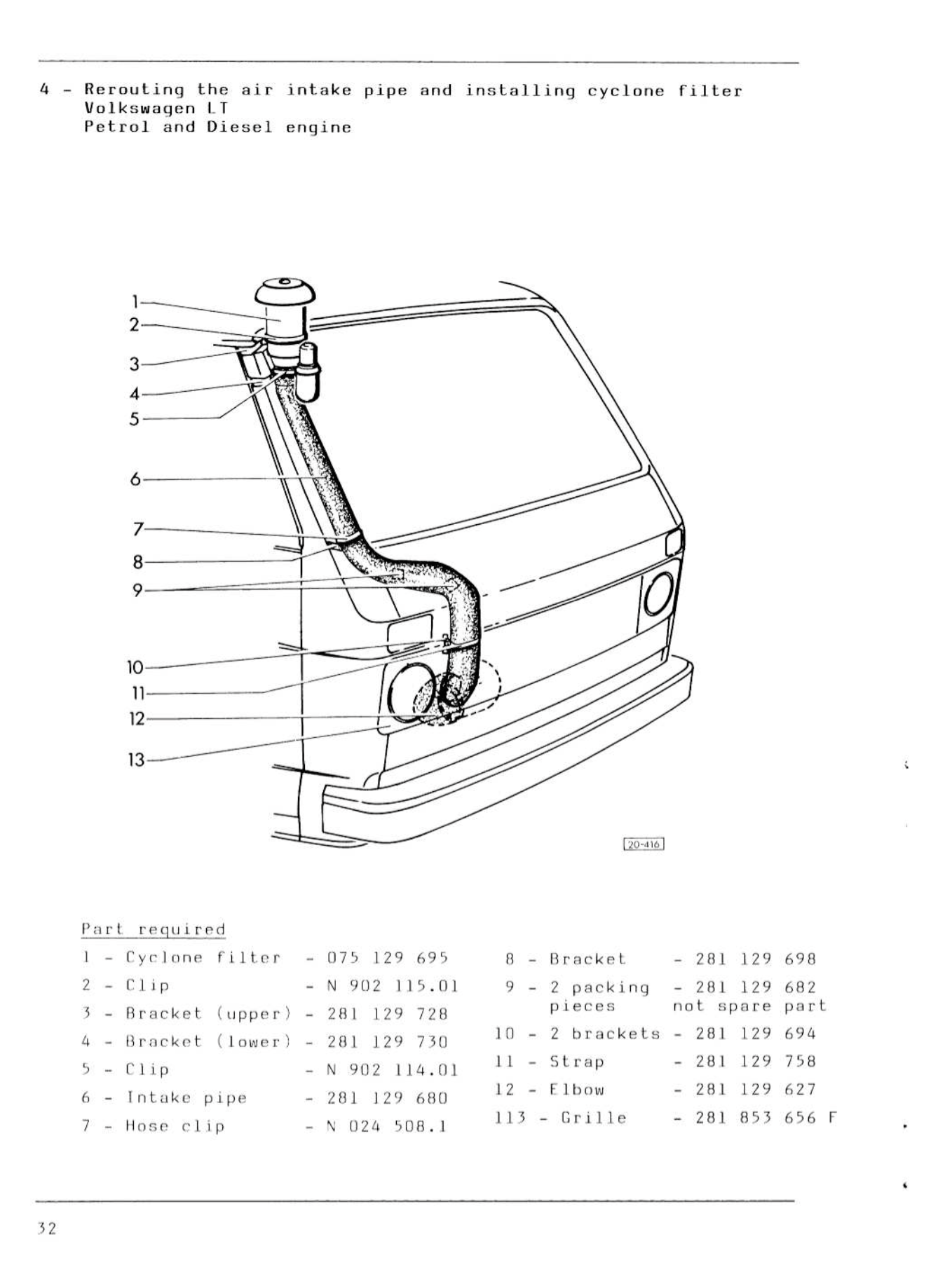

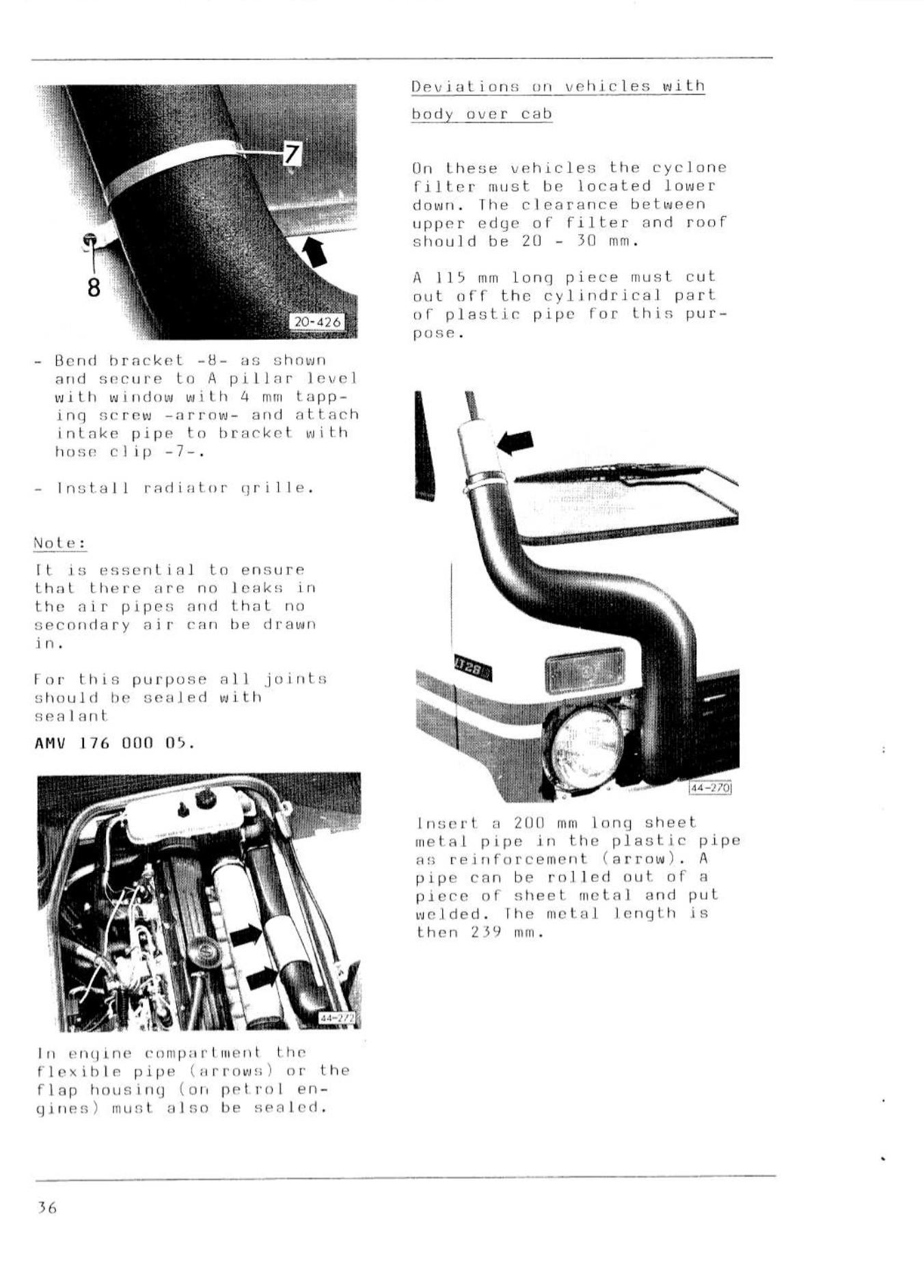

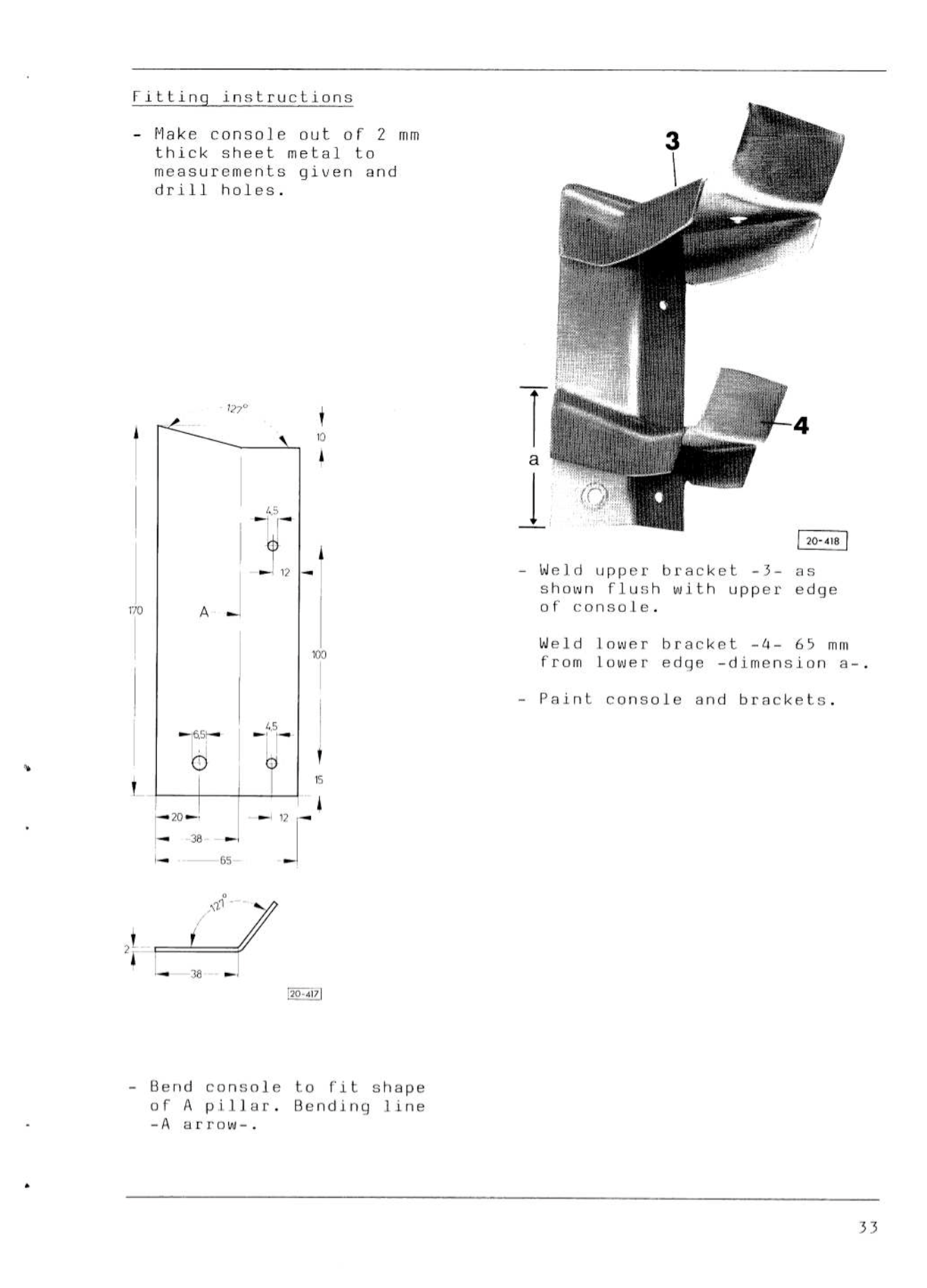

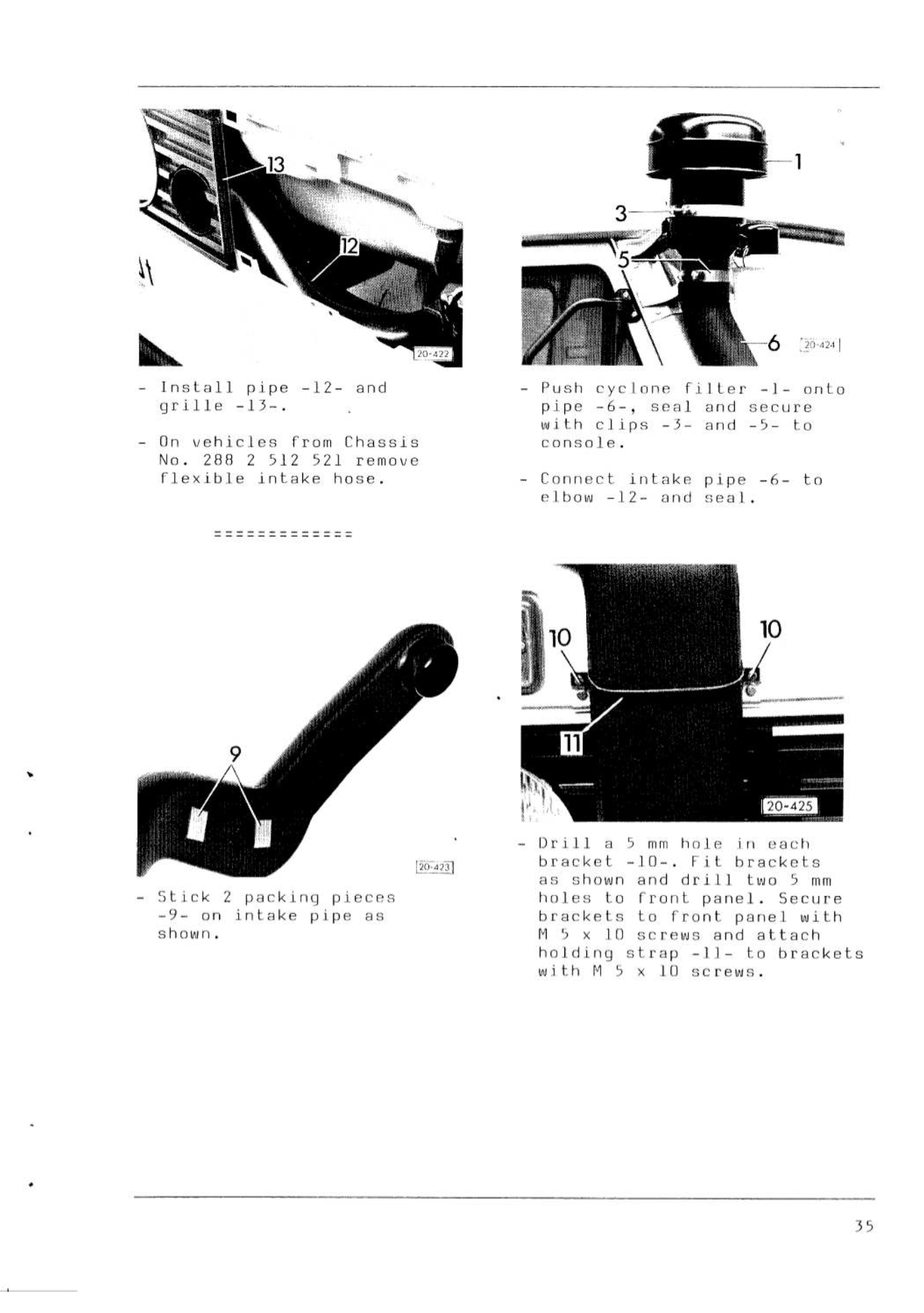

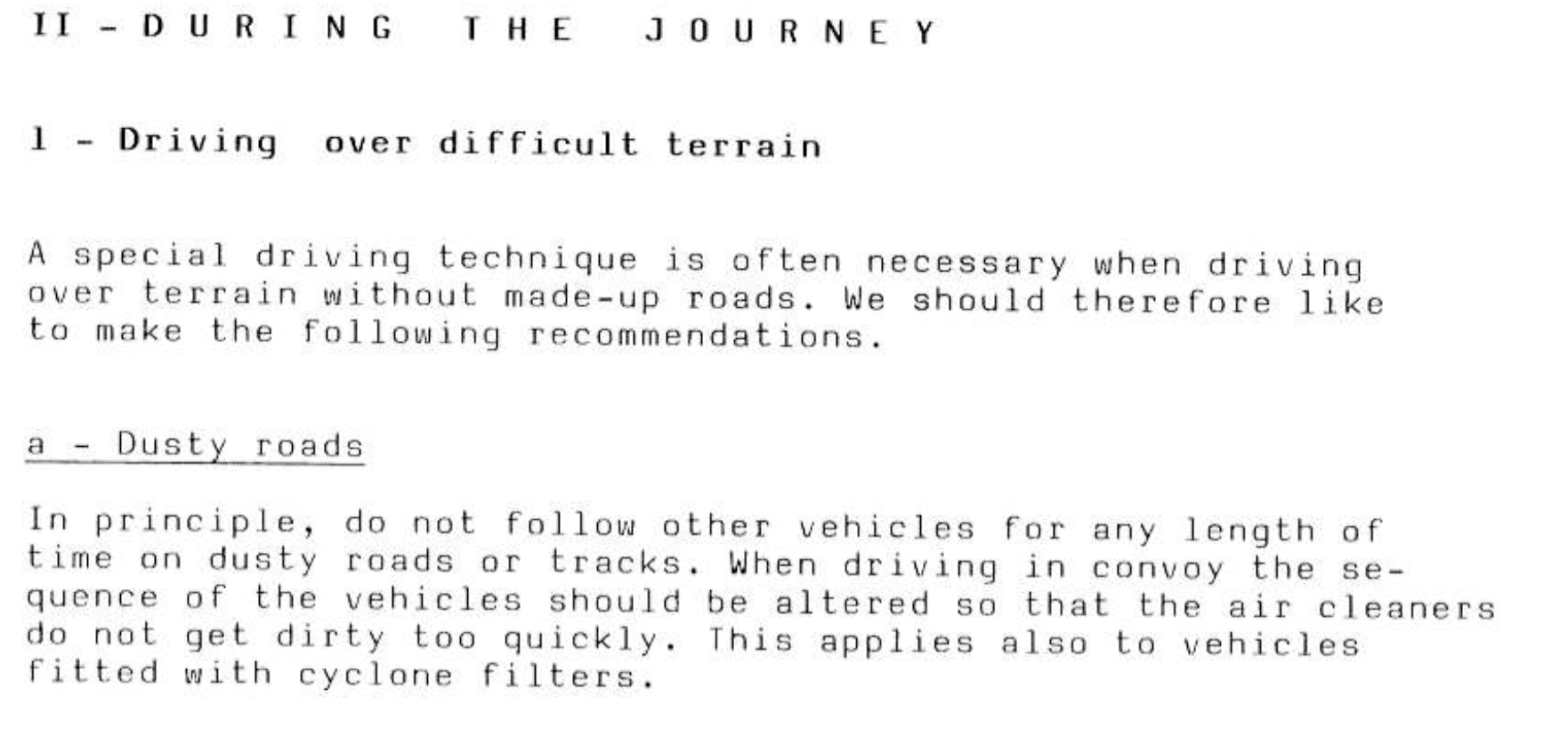

Attached are documents from the original Volkswagen Technical Recommendations annual for 'Journeys under difficult conditions'. The snorkel illustrates in this manual is for vans with round headlights.
